Introduction: Cooling Solutions for Hybrid Facilities
Facilities with hybrid construction, i.e. manufacturing and warehousing existing next to each other, are distinguished by special cooling challenges. The manufacturing areas produce a lot of heat due to the machine workload, whereas the warehouse space requires a lot of volume air movement in order to keep the employees cool and the goods preserved. The conventional HVAC systems tend to be ineffective in addressing these mixed needs, which results in the high cost of energy and uneven cooling. Evaporative systems of cooling down warehouses in the factories provide a lasting, cost-efficient solution to these dual-purpose areas.
The evaporative cooler logistics and manufacturing systems have provided cost-saving, better ventilation and flexibility in hybrid layouts. This paper focuses on the issue of cooling hybrid facilities, the solution of the evaporative coolers, their advantages, and guidelines to follow when implementing them.
The Hybrid Facility Cooling Challenge
Hybrid production facilities integrate production lines of manufacturing operations with a warehouse storage that is located nearby:
- Producing Heat loads: Major machinery such as presses, ovens, or CNC machines produces a large amount of heat increasing the indoor temperature to 35C (95F) or more according to OSHA statistics.

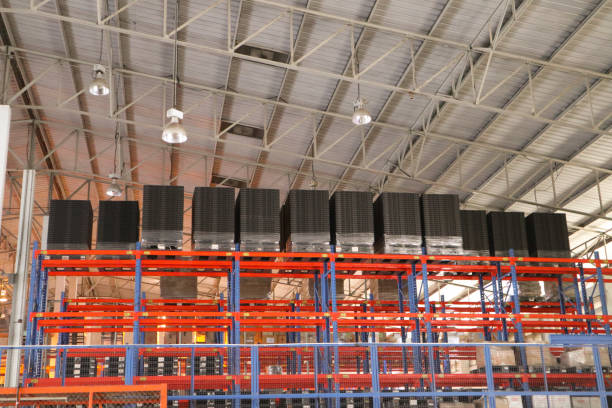

- Warehouse Air Circulation: Warehouse is a big and open storage that needs a constant circulation of air to avoid stuffiness and to protect commodities such as electronics or even perishables.
- HVAC Inefficiencies: The conventional HVAC is expensive to run in large open areas and find it difficult to balance the high heat production during manufacturing with the requirement to ventilate the warehouse.
Ineffective cooling exposes workers to heat stress, low productivity and spoilage of products, hence ventilation of logistics warehouses is vital in terms of adhering to OSHA and ISO standards.
Evaporative Cooling as a Flexible Solution

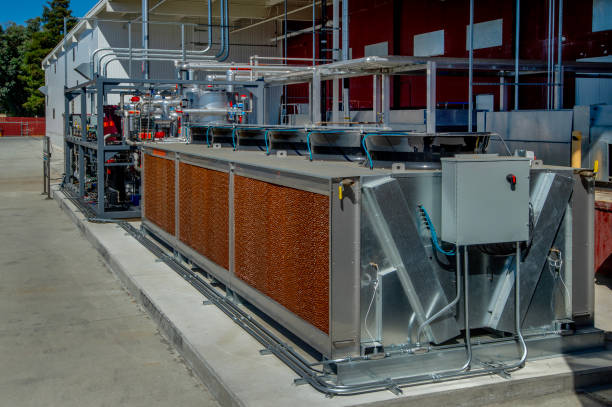

Evaporative coolers operate on the principal of drawing warm air through water-soaked pads, during which evaporation lowers temperatures by 15 25 o C further swept by fans thus supporting cool air. They are flexible and so they can be employed in hybrid cooling systems:
- Scalability: The units can be between 5-30,000 CFM, which can serve a small warehouse or a large-scale production facility.
- Zoning Capability: Multiple units are able to address certain zones (e.g., production lines vs. storage aisles).
- Cost-Effectiveness: According to the data provided by ASHRAE, compared to HVAC, evaporative coolers have lower infrastructure requirements, there is no extensive ductwork, installation costs are reduced by 3050 percent.
The evaporative coolers offer fresh air continuously, unlike HVAC which recycles air and thus makes them the best option of industrial hybrid cooling in mixed-use premises.
Energy & Comfort Benefits
Energy Efficiency in Hybrid Operations
HVAC is much less energy-efficient than evaporative coolers:
- Low Energy Use: Use 0.3-0.4 kW/ton, versus HVAC 1.2 -1.5 kW/ton, which will save 70-80 percent on energy, according to the U.S. Department of Energy (DOE) standards.
- Cost Savings: A 50,000 m 2 evaporatively cooled facility would save on cooling expenses, which are $0.15/kWh, at 20,000 to 40,000 each year, which would be saved by $60,000 to $100,000 per year with HVAC.
The combined warehouse factory cooling solutions are cost effective due to such savings, which allow hybrid operations to work financially.
Worker Safety & Productivity
Proper cooling improves the working conditions:
- Reduced heat Stress: Cuts down the temperature of the factory floor by up to 20% cutting down heat-related accidents, according to the OSHA research.
- Better Airflow: The circulation of air in warehouses is enhanced and this improves the morale of workers, since they are not stuffy.
- Improved Concentration and Less Absenteeism: Since the atmosphere is cooler, productivity is enhanced and the research found that the productivity of well-ventilated places increased by 10-15 percent.
Product & Equipment Protection
Cooling by evaporation helps to ensure stability of operation:
- Constant Temperatures: This will avoid overheating of stored products such as electronics, food or packaging material.
- Equipment Longevity: Removes thermal stress on equipment, which lengthens life and also limits downtime.
- Humidity Balance: Adds a small amount of moisture in dry climates that will not overly humidity the delicate products.
These advantages guarantee the cooling of the warehouse factories to satisfy the needs of workers and the inventory.
Layout & Design Best Practices
Zoning the Facility
Cooling of strategic positioning:
- Installation of Zones: Place evaporative coolers with high CFM, that is, 15,000-30,000 CFM, in the proximity of heat generating apparatus such as assembly line or furnaces.
- Warehouse Areas: Kick offloading docks and storage aisles with medium-CFM units (5,000 to 10,000 CFM) to guarantee an equal flow of air.
- Airflow Paths: Planning layouts to eliminate blockages, so that cool air gets to every worker and every storage area.
Hybrid Integration with Other Systems
Integration is the best way to maximize performance:
- Exhaust Fans: Use exhaust fans pairing evaporative coolers to improve the ventilation in hot manufacturing spaces.
- HVAC of Sensitive Areas: HVAC of climate controlled storage (e.e. pharmaceuticals) should be used while evaporative coolers are used in the general areas.
- Control Systems: Have smart thermostats to regulate cooling in real-time heating requirements.
Maintenance & Compliance
Provide long-term efficiency and regulatory consistency:
- Routine Cleaning: Water tanks should be kept clean and the pads should be replaced every 6-12 months in order to uphold hygiene; a 50,000 m 2 facility will cost 500-1500/year.
- OSHA Compliance: Adhere to ventilation (e.g., 15–20 air changes/h) in order to keep the workers safe.
- Monitoring: Measure air quality with air quality sensors to check on performance and adherence to the ISO 14001 environmental standards.
Case Study Example
Case Study: Logistics & Manufacturing Facility in Texas
A hybrid warehouse with a 40,000 m 2 area that accommodates manufacturing and storage of automotive parts was characterized by the high cost of HVAC and the uneven cooling of the building. The production area was subjected to heat stress as reported by the workers, and the aisles inside the warehouses were stuffy affecting the quality of the products.

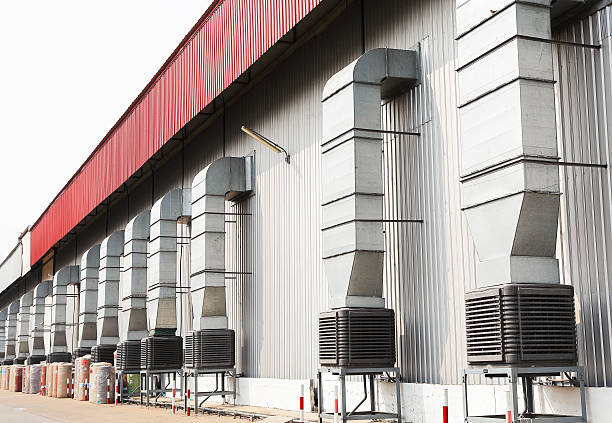

- Solution: Installed 12 evaporative coolers (20,000 CFM each) with zone on production lines and loading docks that were supported by exhaust fans to provide ventilation.
- Results:
- Energy Savings: There was a 25% decrease in cooling expenses (22,000/year).
- Comfort of the Workers: It has better dock and floor comfort with a 15 percent lower absenteeism rate in summer months.
- ROI: System has recovered after 2 years of operation because of low cost of installing it (35,000) and operating costs are also low.
- Testimonial: “The evaporative coolers helped us to match our factory and warehouse requirements. Employees feel better and our electricity bills have reduced substantially. – Facility Manager
The case explains the success of evaporative cooler logistics and manufacturing solutions in a hybrid environment.
Conclusion
Hybrid manufacturing and warehouse plants demand efficient cooling flexibility to meet a variety of requirements. The hybrid cooling systems with evaporative coolers provide warehouse factory cooling that will save 70-80% of the energy, will enhance worker safety, and will safeguard the inventory. The systems can be adapted and meet the OSHA and ISO standards, as well as be integrated with fans or HVAC to control zones. Not only are evaporative coolers energy-efficient, but they also are flexible to hybrid designs with comfort, compliance, and ROI.
Discover KoolAir evaporative cooling systems that are available to hybrid manufacturing-warehouse facilities. Today, ask us to give you a free layout consultation and maximize cooling in your facility.
FAQ
How do evaporative coolers work in large hybrid facilities?
Evaporative coolers involve the use of water evaporation to reduce the temperature of the air by 15-25degF to provide high amount of air that is fresh and at high volume that would be appropriate in manufacturing and warehouse areas.
Can evaporative cooling be combined with HVAC in hybrid warehouses?
Yes, hybrid systems combine evaporative cooling to general areas with HVAC to humidity sensitive zones to compromise efficiency and accuracy.
What is the ROI of evaporative cooling in warehouse + manufacturing operations?
According to DOE data, evaporative coolers have typically reached ROI within 1-3 years based on 70-80 percent energy savings and reduced cost of installation.
