Built to Move More Air

Industrial HVLS fans, PMSM systems and evaporative cooling equipment for demanding large-space applications.

RTFANS KA-5090 evaporative cooling padKA-5090 · Product reference
Rtfans Evaporative Cooling Pads 023Rtfans Evaporative Cooling Pads 008Rtfans Evaporative Cooling Pads 012

Evaporative Cooling Pad · KA-5090

Evaporative Cooling Pad 5090

A fine-flute honeycomb cooling pad for evaporative air coolers, ventilation systems and OEM cooling equipment. Confirm the size, depth and airflow requirements before ordering.

5 mm flute45°/45° angle50/100/150 mm depthCustom sizes

Send your required size, quantity, application and destination for a suitable configuration.

Supplier rating on Alibaba: 4.9/5 based on 22 buyer reviews · Read buyer reviews

Technical specifications

5090 Evaporative Cooling Pad Specifications

Values shown from the current RTFANS product record.

KA-5090 technical specifications
MPNKA-5090
SKUKA5090LL1
Pad height150–2,000 mm / customizable
Pad width100–1,000 mm / customizable
Pad depth50 / 100 / 150 mm
Flute height5 mm
Flute angle45° / 45°
ApplicationEvaporative cooling

Confirm fit before production

Pad performance depends on dimensions, airflow, air velocity, depth, water distribution and operating conditions. Share the equipment opening or existing pad dimensions for review.

Send your equipment details

Selection guide

Why choose a 5090 cooling pad?

The KA-5090 uses a fine 5 mm flute structure to create effective air-to-water contact in a compact evaporative cooling medium. Available depths give equipment designers and replacement buyers a starting point for matching installation space and airflow requirements.

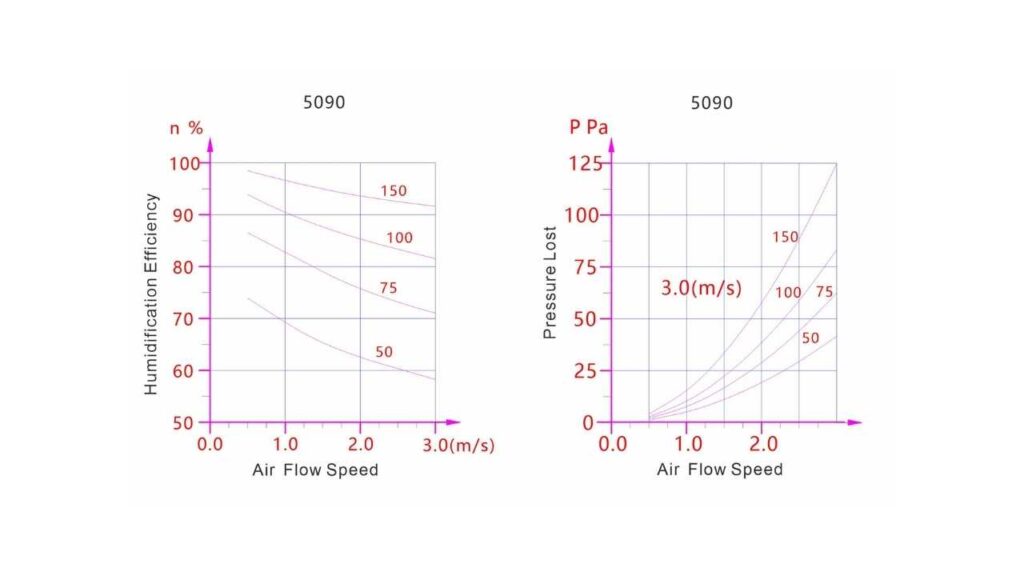

When wetted air passes through the honeycomb media, water evaporation absorbs heat from the incoming air. Actual cooling performance depends on pad sizing, water distribution, air velocity and local dry-bulb and wet-bulb conditions.

Built for cooling projects

Applications

Use the 5090 where the equipment design calls for this pad configuration.

Evaporative Air Coolers

Replacement and OEM media for compatible air cooler cabinets and fresh-air cooling units.

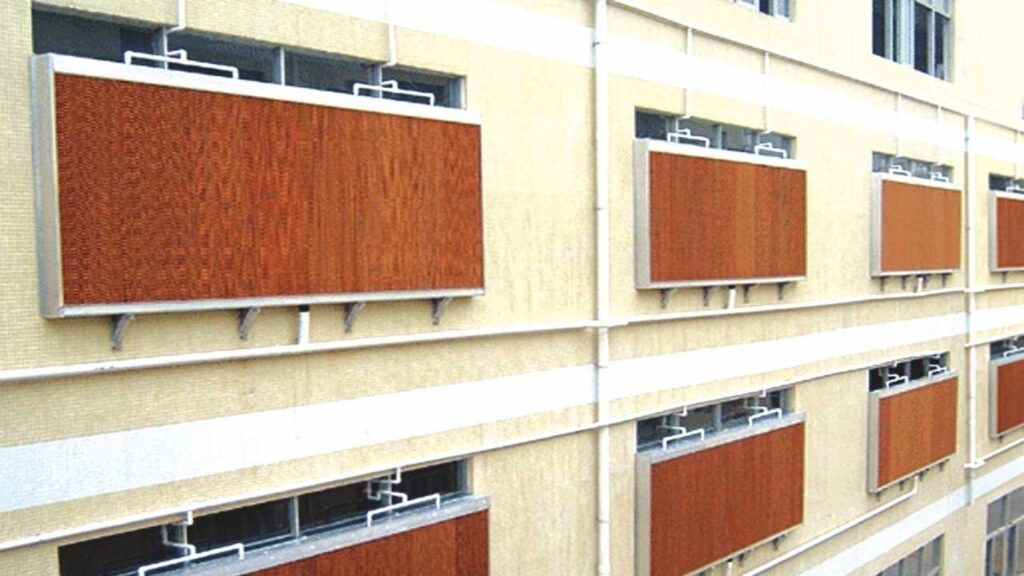

Industrial Ventilation Systems

Wetted media for fan-and-pad systems where airflow, pad area and pressure drop are engineered together.

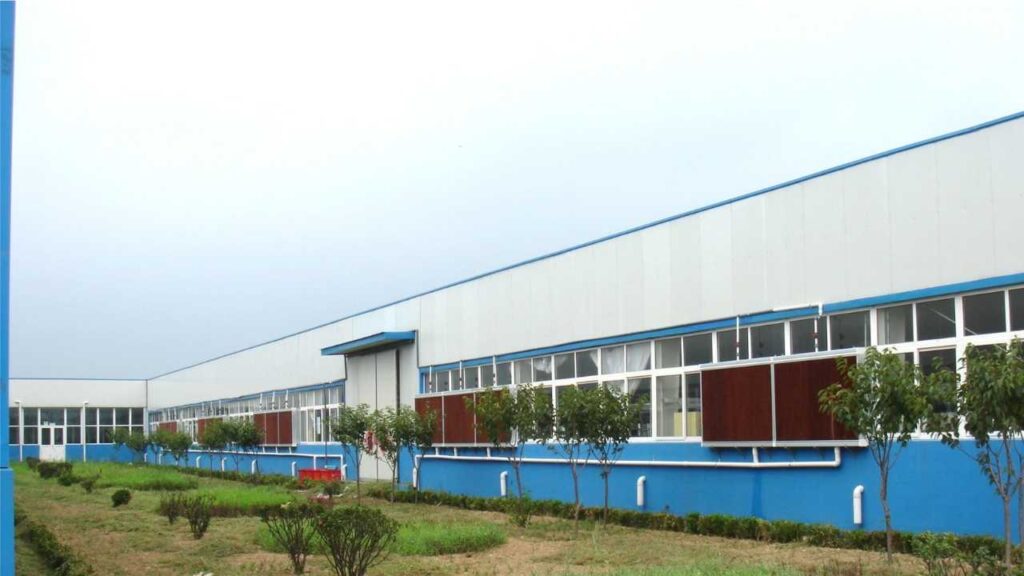

Greenhouse & Agricultural Cooling

Custom-size 5090 cooling pads for compatible greenhouse, poultry and livestock ventilation systems.

OEM Cooling Equipment

Custom dimensions, bulk production and private-label support for air cooler and ventilation equipment manufacturers.

Configuration check

Not sure whether you need 5090 or 7090?

View 7090 cooling pad
50905 mm flute

Fine flute configuration for compatible evaporative air coolers, ventilation systems and OEM equipment.

Review 5090 specifications
70907 mm flute

Different media configuration. Confirm airflow, dimensions, depth and pressure-drop requirements before selecting.

Review 7090 specifications

5090 and 7090 are not interchangeable by name alone. Confirm equipment compatibility and system design before replacing one configuration with another.

Project supply

Custom sizes and OEM support

Custom manufacturing

Custom height, width and depth options for compatible equipment and replacement requirements.

OEM / ODM support

Dimensions, packaging and private-label requirements can be reviewed for bulk cooling equipment projects.

Quality and selection review

Share application conditions and pad dimensions so the configuration can be checked before quotation.

Global export support

Provide the destination country with your RFQ so shipping and project requirements can be considered together.

Buyer questions

5090 cooling pad FAQ

What is a 5090 cooling pad?

A 5090 cooling pad is a honeycomb evaporative cooling medium identified by its fine flute configuration. The RTFANS KA-5090 uses a 5 mm flute height and 45°/45° flute angle.

What does 5090 mean in evaporative cooling pads?

The 5090 designation identifies the pad configuration. Confirm the flute, angle, depth and dimensions with the equipment design before ordering a replacement or OEM batch.

What is the flute height of a 5090 cooling pad?

The KA-5090 has a 5 mm flute height with a 45°/45° flute angle.

What sizes are available for 5090 cooling pads?

The listed height range is 150–2,000 mm and width range is 100–1,000 mm. Depth options are 50, 100 and 150 mm, with custom dimensions available for compatible equipment.

What is the difference between 5090 and 7090 cooling pads?

The 5090 and 7090 use different flute configurations. Selection depends on airflow, air velocity, pad depth, installation space, pressure drop and equipment design; they should not be substituted without confirming compatibility.

Can you manufacture custom-size 5090 cooling pads?

Yes. Share the required height × width × depth, quantity, application or equipment model, destination country and any packaging or private-label requirements for review.

How do I request a quote for 5090 evaporative cooling pads?

Send your required size, quantity, application and destination. Photos or the dimensions of an existing pad can also help our team confirm a suitable configuration.

Category questions

Evaporative Cooling Pad System FAQs

What is an evaporative cooling pad?

Honeycomb wet-pad media for evaporative air coolers and pad-and-fan cooling systems. Water is distributed across the pad and incoming hot air passes through the wet fluted channels; evaporation lowers the leaving-air temperature.

What is the difference between the 5090 and 7090 cooling pads?

The 5090 uses a fine 5 mm flute structure with a 45°/45° flute angle, in 50, 100 and 150 mm depths with custom dimensions. The 7090 is treated paper media with hardeners, preservatives and odorless binders, in pad heights 1,500 / 1,800 / 2,000 mm, widths 300 / 600 / 900 mm and depths 100 / 150 / 200 / 300 mm.

How does a cooling pad and exhaust fan system work?

The honeycomb pad is wetted and the exhaust fan draws hot indoor air out, creating negative pressure that pulls fresh outdoor air through the wet pad. Evaporation cools the incoming air before it reaches the occupied area.

What exhaust fan models are available?

KA-1380 GI, KA-1220 GI and KA-900 GI, with model options from 15,000 to 38,000 m³/h

Where are these systems used?

Factories, workshops, greenhouses, poultry houses and livestock buildings, and other large ventilated spaces.

Can the pad dimensions be customized?

Yes. The 5090 is available in custom dimensions; the 7090 is configured for project-specific installations.
