Evaporative Cooling Pad 7090

RTFANS Evaporative Cooling Pad 7090 is structured honeycomb wet-pad media for evaporative air coolers and pad-and-fan cooling systems, with configurable dimensions for project-specific installations.

SeriesProduct record
ModelKA-7090
CategoryCooling Pads System
Product record retained for engineering review and project selection.

Supplier rating on Alibaba: 4.9/5 based on 22 buyer reviews · Read buyer reviews

Product overview

Specification snapshot

Legacy record values shown as supplied
MPN / modelKA-7090
AirflowNeeds confirmation
Rated powerNeeds confirmation
VoltageNeeds confirmation

Product record

Technical specifications

Evaporative Cooling Pad 7090 available product record specifications
MPNKA-7090
SKUKA7090LL1
Pad Height(mm)1,500, 1,800, 2,000
Pad Width(mm)300, 600, 900
Pad Depth(mm)100, 150, 200, 300
Flute Height(mm)7
Groove Angle a45°
Groove Angle b45°

Product context

About Evaporative Cooling Pad 7090

Evaporative Cooling Pad 7090 is designed for large factories, warehouses and high-heat industrial spaces. Its treated evaporative media supports stable water distribution and heat transfer.

High-volume airflowFresh-air evaporative coolingIndustrial spaces

Operating principle

How it works

3 steps
01

Wet the pads

Water is circulated from the tank to saturate the evaporative cooling pads.

02

Draw in hot air

The fan or blower pulls hot outdoor air through the wet pads.

03

Deliver cooled air

Heat is absorbed through evaporation before filtered air reaches the occupied space.

Built for industrial use

Engineering features

High-volume fresh air

Continuous outdoor air movement helps reduce heat in open or semi-open facilities.

Efficient cooling pads

Even wetting supports stable evaporation, filtration and cooling performance.

Durable construction

Corrosion-resistant housing and reinforced components support long service life.

Simple controls

Timer, temperature and optional humidity controls make daily operation easier.

Selection data

Performance profile

Airflow
Needs confirmation
Rated power
Needs confirmation
Application area
Needs confirmation
Water consumption
Needs confirmation

Before specifying

Operating notes

Cooling performance depends on entering air temperature, relative humidity and ventilation. The system performs best where cooled fresh air can move continuously through the space.

Service routine

Maintenance checklist

Before seasonal shutdownTurn off the water supply, empty and clean the tank, and dry the cooling pads.

During extended storageDrain circulating water and check the tank, pads and housing for scale, algae or corrosion.

Facility planning

Recommended applications

Cooling Media and System Details

Review pad construction, water distribution, installation pairing and service requirements for this cooling media system.

The 7090 cooling pad uses treated paper media with hardeners, preservatives, and odorless binders to support structural strength and service durability in continuous wet operation.

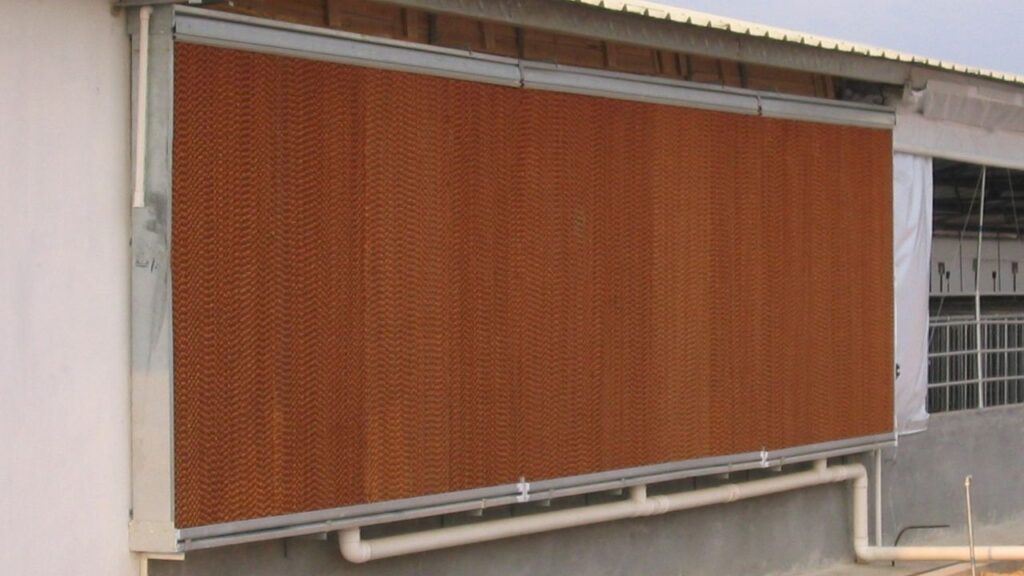

During operation, water is distributed across the pad and incoming hot air passes through the wet fluted channels. Heat is transferred from the air to the water, and evaporation lowers the leaving-air temperature. The resulting cool, humidified air can then be moved through the target space by an air cooler or exhaust-fan system.

The 7090 format is intended for configurable installations where pad height, width, and depth must match the equipment opening and required airflow conditions. It can be specified for evaporative air coolers, agricultural buildings, livestock facilities, and industrial ventilation systems, subject to project sizing and water-quality requirements.

The 7 mm flute height and 45° / 45° groove geometry support repeatable pad assembly and water distribution. Available pad dimensions should be confirmed against the selected frame, airflow, water distribution method, and installation orientation before ordering.

For reliable operation, keep the water distribution system clean, inspect the pad for scale or biological growth, and prevent dry spots during operation. Actual cooling performance depends on entering-air conditions, relative humidity, airflow, water distribution, and system design; final selection should be verified by the project engineer.

Inspect the pad at the start and end of the cooling season, or more frequently in dusty or mineral-heavy operating environments. Clean or replace the media when fouling, scaling, deformation, or reduced water distribution affects airflow and cooling performance. Service intervals and replacement timing vary with operating conditions and should follow the equipment maintenance plan.

Related industrial equipment

View all in Cooling Pads System

Facility planning

Evaporative Cooling Pad System FAQs

What is an evaporative cooling pad?

Honeycomb wet-pad media for evaporative air coolers and pad-and-fan cooling systems. Water is distributed across the pad and incoming hot air passes through the wet fluted channels; evaporation lowers the leaving-air temperature.

What is the difference between the 5090 and 7090 cooling pads?

The 5090 uses a fine 5 mm flute structure with a 45°/45° flute angle, in 50, 100 and 150 mm depths with custom dimensions. The 7090 is treated paper media with hardeners, preservatives and odorless binders, in pad heights 1,500 / 1,800 / 2,000 mm, widths 300 / 600 / 900 mm and depths 100 / 150 / 200 / 300 mm.

How does a cooling pad and exhaust fan system work?

The honeycomb pad is wetted and the exhaust fan draws hot indoor air out, creating negative pressure that pulls fresh outdoor air through the wet pad. Evaporation cools the incoming air before it reaches the occupied area.

What exhaust fan models are available?

KA-1380 GI, KA-1220 GI and KA-900 GI, with model options from 15,000 to 38,000 m³/h

Where are these systems used?

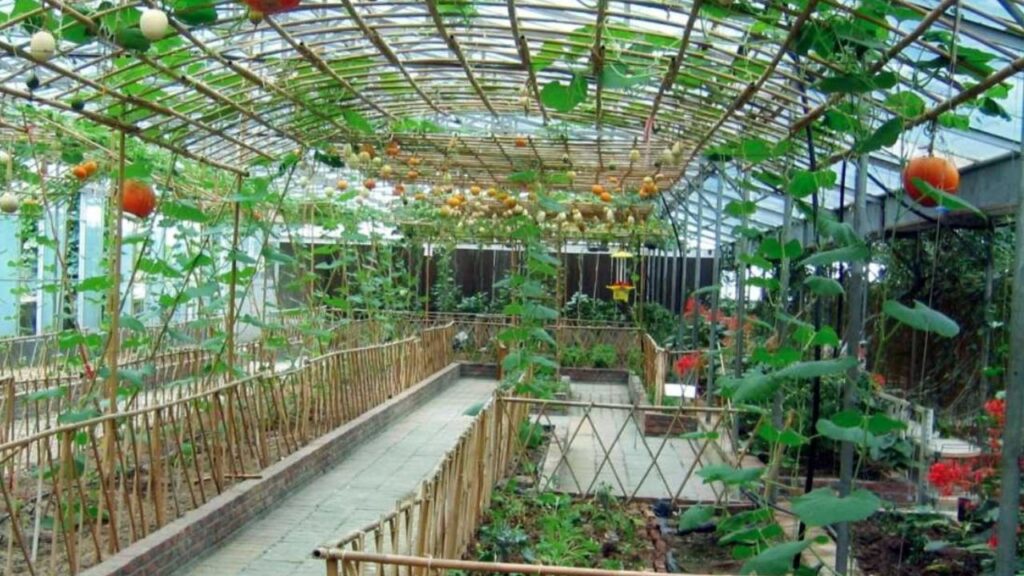

Factories, workshops, greenhouses, poultry houses and livestock buildings, and other large ventilated spaces.

Can the pad dimensions be customized?

Yes. The 5090 is available in custom dimensions; the 7090 is configured for project-specific installations.
