Commercial Ceiling Fans for Room

In a GYM, people sweat a lot due to workouts. So, there is a special need for high airflow. HVLS Fans provide a cool breeze in the area that keeps the sweat away from the people. The people in the area sweat less and feel energetic due to high airflow. The humidity of the area is also reduced, which makes people feel more comfortable.

HVLS large ceiling fans are ideal for the ventilation of commercial places. They can ventilate a large area without any hassle. You can install them to offer the best customer service.

Commercial ceiling fans for rooms provide significant benefits in various commercial areas, including factories, gyms, libraries, restaurants, and waiting rooms. These expansive commercial spaces require proper ventilation, especially in places like gyms and restaurants. Small ceiling fans or wall-mounted fans are insufficient for effective coverage due to the substantial area. Consequently, commercial ceiling fans for rooms are the preferred choice in these settings, and their prominent presence can be observed in various establishments. Now, let us explore the advantages offered by these commercial ceiling fans for rooms.

By utilizing RTFANS’s HVLS Fans, air coolers, and other systems, we can establish a comfortable indoor environment, enabling people to rest and work more effectively.

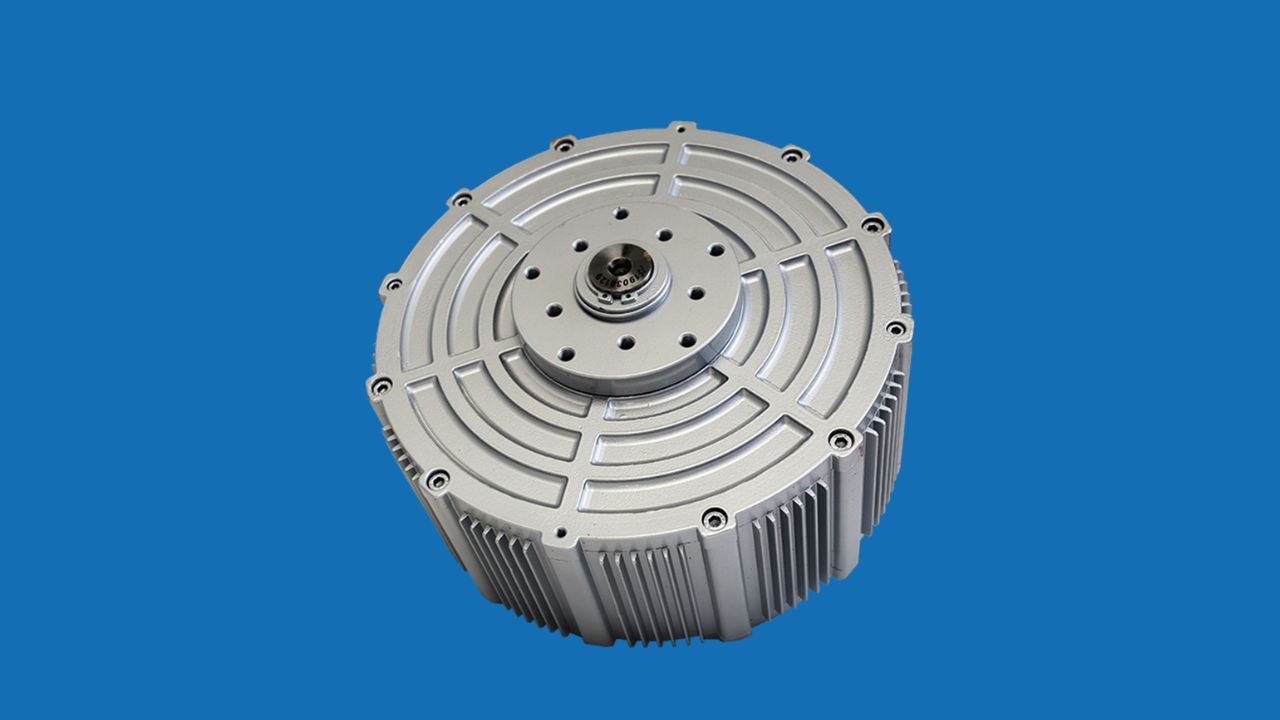

High efficiency PMSM (permanent magnet direct drive) motor without gear and lubrication oil replace.

Inner rotor motor, with permanent magnet made of neodymium iron boron in a mosaic structure.

IP64 level of protection, no need heat dissipation holes, long service life.

Plug-in temperature sensor with automatic over-temperature protection.

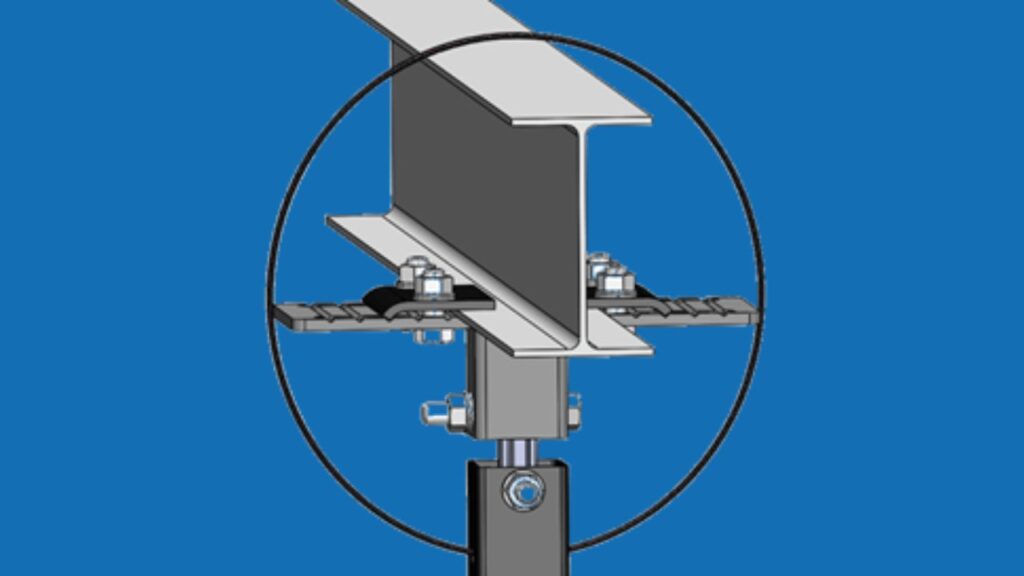

Multi-point installation, fixing and balancing the force, effectively reduce the jitter and shake, improving the safety.

Compact and light design, no space limitation and easy to install.

Imported Aeronautic Aluminum Alloy (AA7075);

Unique Double Wheel Hub design;

High pressure forging technology, with T6 thermal treatment process & CNC precision machining & dynamic balance test of the complete set chassis & 40 times strength test.

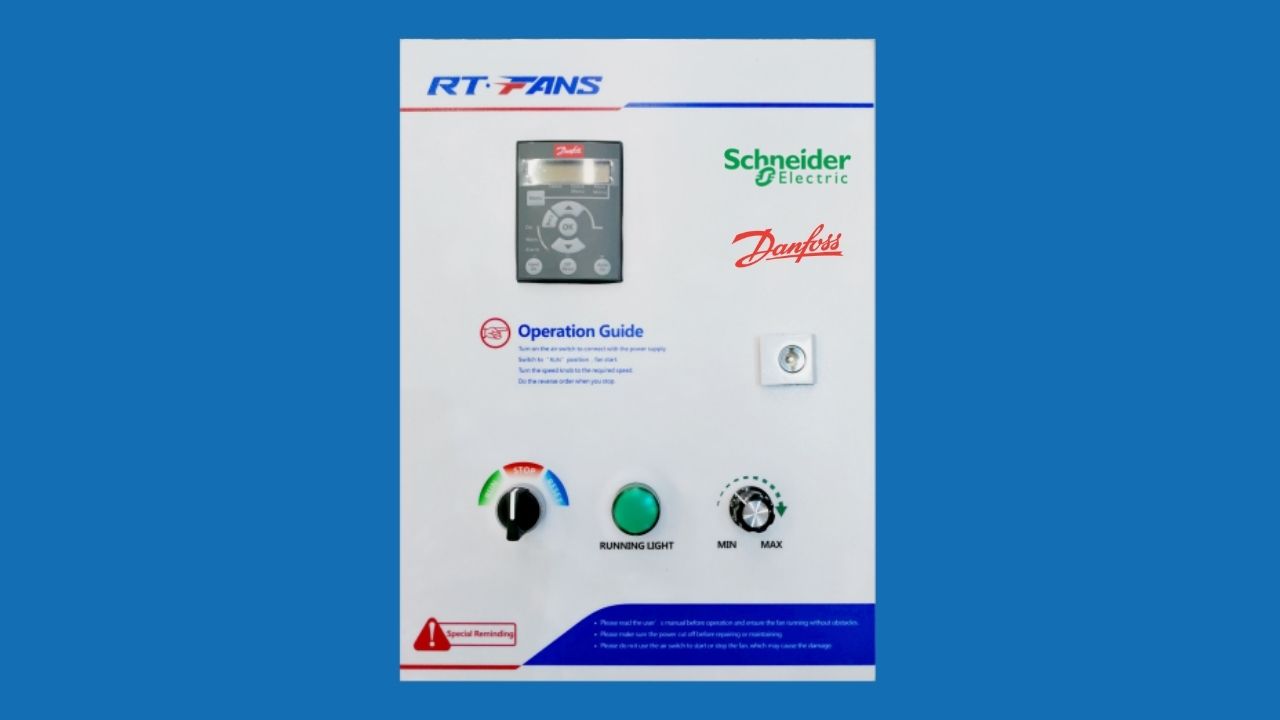

VFD inverter controller, with stepless speed regulation;

With safety protection module inside, over-current, over-voltage, lack of phase, etc.

Adopt traditional mortise & tenon structure design with robot welding, more safer and reliable;

Anti-skip design, more safety and reliable.

Q345 high strength steel panel with anti-rusty coating。

High strength aircraft Aluminum alloy: AA6063T6511 with fluorocarbon coating surface processing;

Patented airfoil design with special reinforce rib support system which increase the strength of fan blade and avoids the sagging of fan tail and fatigue loss of connecting components.”

Unique cardan joint design, working as a human beings’ joint, to decrease the shocking of fan during running.

Cover 1,000m² + with only 1.5kw!

Big industrial ceiling fans are energy efficient,cost-effective and can provide massive air movement in large industrial and commercial spaces.

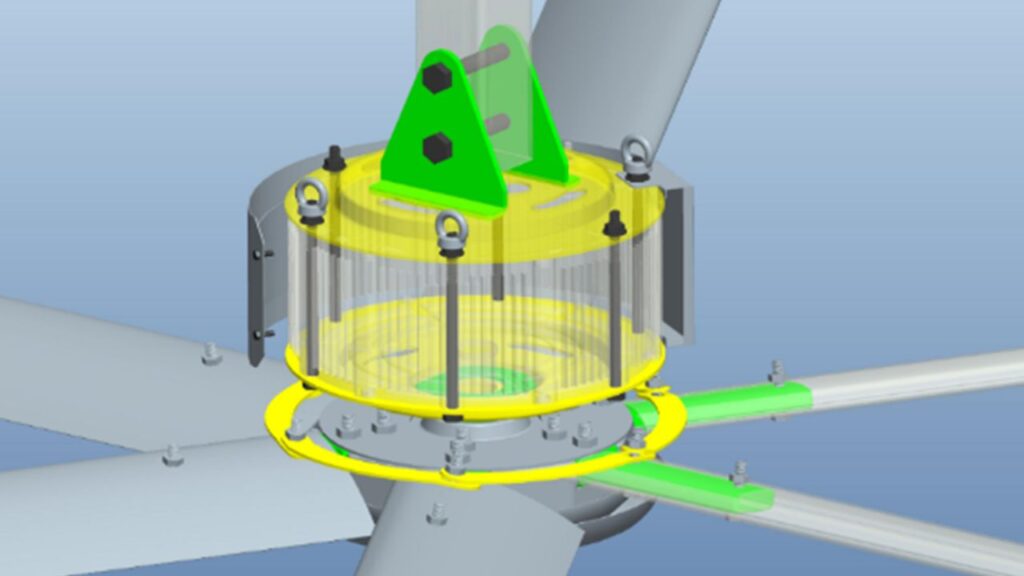

Mortise and Tenon Joint Structure welded by Robot.

Two L-shape Q345B high-strength steel plates connected with the top cover of the motor frame.

The motor is fixed by the two circular high-strength steel plates connected with 6 pcs longer screws and glue.

With high strength 8.8 grade industrial Bolt and Locknut.

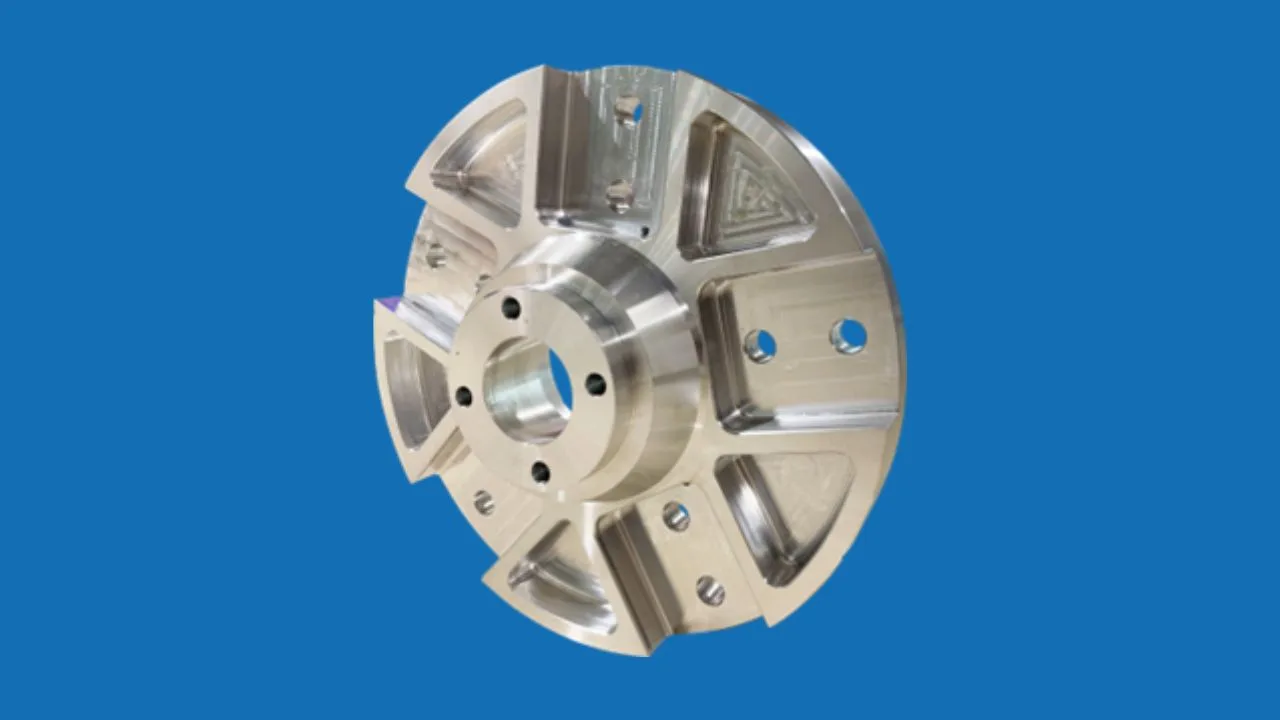

Unique design with milling cutter chuck to connect the motor shaft and hub wheel, using an Anti-drop device to connect with milling cutter chuck to eliminate any risk of falling, more higher security.

High strength aircraft Aluminum alloy: AA7075 Sereis;

The blades are installed in the interpolation type, which increases the contact area between the blade plug and the inner wall of the blade and improves the force performance on the blade and the blade plug, bettering its security.

6 pcs airfoils are connected into a whole with 6 pcs safety retainer.

German DIN933 Industrial Bolt and DIN125A locknut with high strength 8.8 grade, the practical stress it could endure is 10 times than normal.

Standard Export Package.

Commercial ceiling fans for room products come with a 10-year warranty on all parts and components. This ensures that you are protected against any manufacturing defects or issues.

Yes, commercial ceiling fans for room units are designed to be highly energy-efficient. They use advanced technology to help reduce energy consumption and lower your utility bills.

Commercial ceiling fans for room products are known for their superior performance, reliability and durability. They are designed to outperform other HVAC systems on the market in every way.
