King Series

King Series is a geared HVLS ceiling fan for room air circulation in industrial and commercial spaces.

SeriesKing Series
ModelRTF-CF-7EEX
CategoryHVLS Fans
Product record retained for engineering review and project selection.

Supplier rating on Alibaba: 4.9/5 based on 22 buyer reviews · Read buyer reviews

Product overview

Specification snapshot

Legacy record values shown as supplied
MPN / modelRTF-CF-7EEX
Airflow15,500
Rated power1.5 kW / 2.0 HP
Voltage220/380 V

Product record

Technical specifications

King Series available product record specifications
MPNRTF-CF-7EEX
SKURTFCF7E01
Fan Dia.7.3 m / 24 ft
Power1.5 kW / 2.0 HP
Air Flow(m³/min)15,500
Voltage220/380 V
Rated current (220/380 V)5.6/3.2 A
Maximum application range1,800 m³
RPM20-53 RPM
Noise43 dBA
Weight135 kg
Fan Blades6 PCS
MotorNORD S1
Specification source2026 export configuration

Product context

About King Series

King Series is designed for large factories, warehouses and high-heat industrial spaces. Its controlled air movement helps equalize temperatures and reduce stagnant air in large occupied spaces.

15,500 airflowFresh-air evaporative coolingIndustrial spaces

Operating principle

How it works

3 steps
01

Move air downward

The suspended rotor moves a broad column of room air toward the occupied zone.

02

Spread air across the floor

Air moves outward from the fan and mixes warmer and cooler layers in the space.

03

Support comfort circulation

Air movement can improve perceived comfort, but the fan does not provide outdoor air or refrigeration.

Built for industrial use

Engineering features

Broad air movement

Large-diameter blades move room air across occupied zones and help mix temperature layers.

Facility-led layout

Ceiling height, structure, racks, lights and sprinklers affect the final fan position.

Mechanical safety review

Mounting, fasteners and secondary retention must follow the model installation instructions.

Routine service access

Inspect blades, fasteners, controls and drive components according to the model manual.

Selection data

Performance profile

Airflow
15,500
Rated power
1.5 kW / 2.0 HP
Application area
Needs confirmation
Water consumption
Needs confirmation

Before specifying

Operating notes

Cooling performance depends on entering air temperature, relative humidity and ventilation. The system performs best where cooled fresh air can move continuously through the space.

Service routine

Maintenance checklist

Before serviceIsolate electrical power and follow the model manual before inspection.

During routine checksInspect blades or impellers, guards, fasteners, safety retainers and controls according to the model manual.

Facility planning

Recommended applications

Airflow and Installation Details

Review the airflow pattern, control system, installation conditions and operating range for this fan.

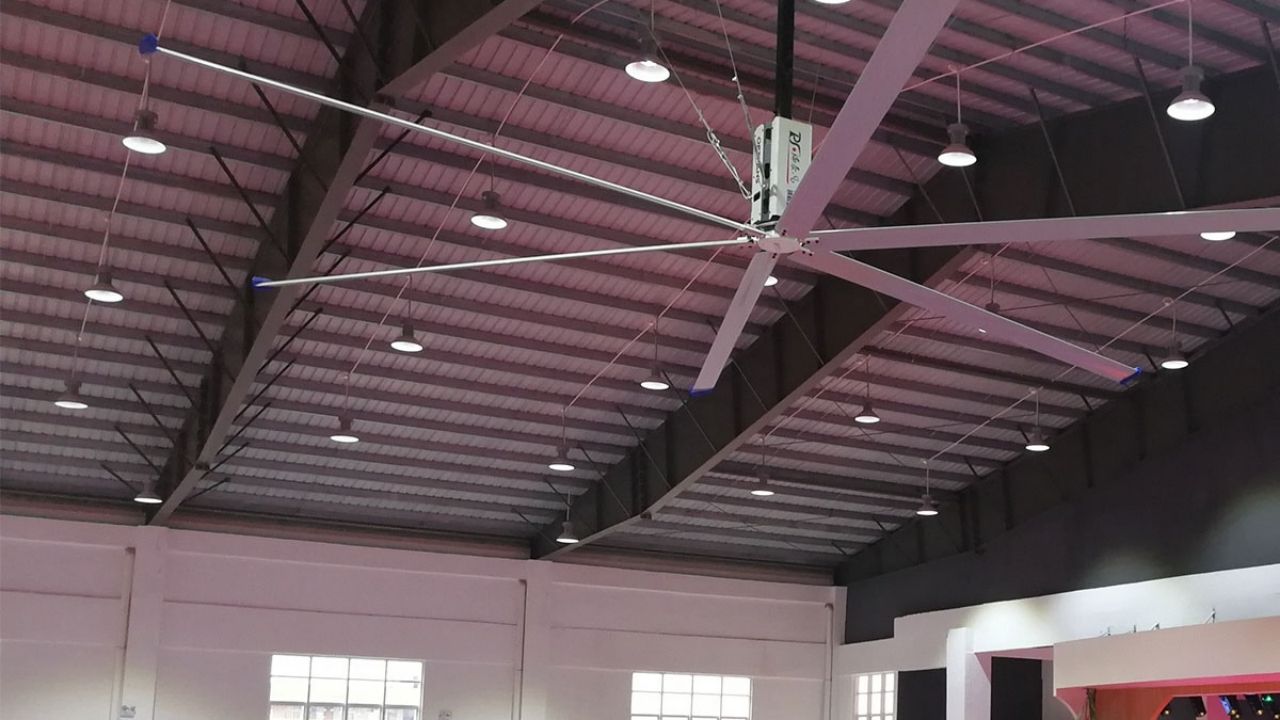

King Series geared HVLS fan

Within the industrial ceiling fans category, the 2026 export configuration lists the RTF-CF-7EEX with a 7.3 m / 24 ft diameter, NORD S1 motor and six blades. Confirm the supplied components and controller against the order specification.

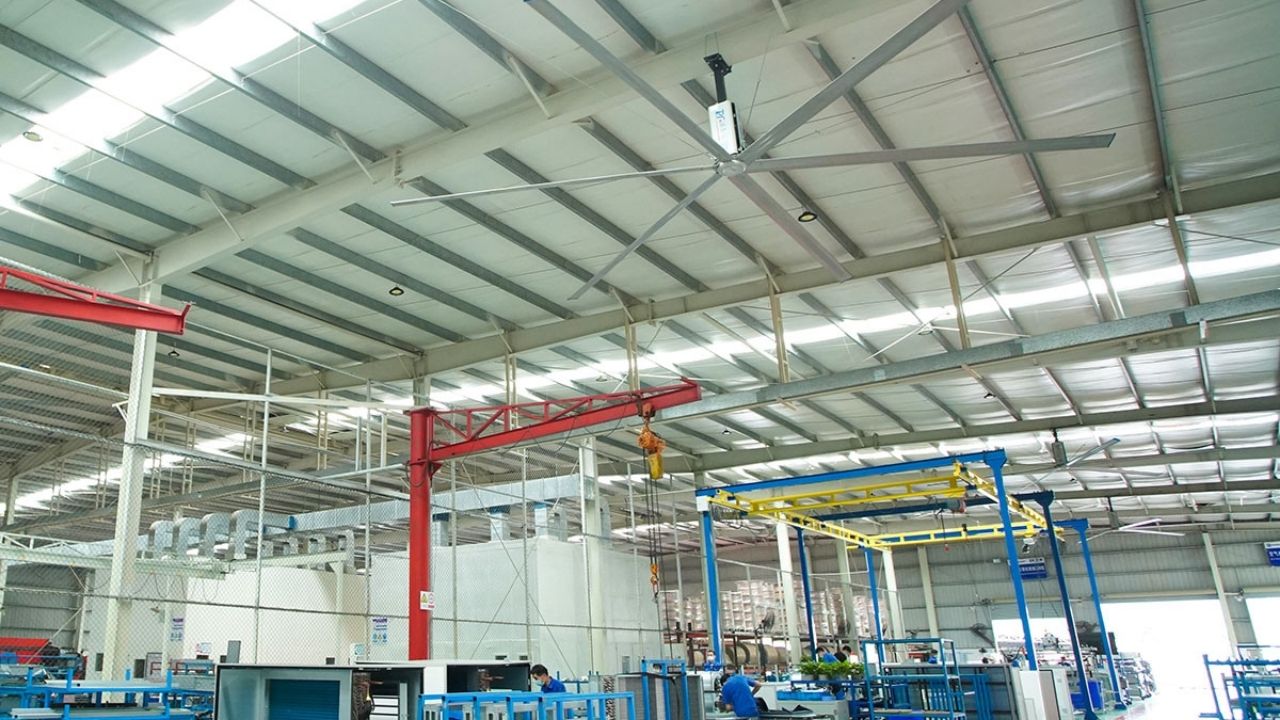

Air circulation and installation

In downward operation, the fan moves air toward the floor, where it spreads around the occupied zone. Layout, mounting height, racks and obstructions affect the air movement. Review ventilation and cooling solutions against the facility requirements. Circulation supports comfort and temperature mixing; it does not provide outdoor air or replace extraction, refrigeration or humidity control.

Specification evidence

The 2026 export configuration specifies 15,500 m³/min airflow, 220/380 V, 1.5 kW / 2.0 HP rated power, 5.6/3.2 A at 220/380 V, 20-53 RPM, 43 dBA and 135 kg. Its maximum application range is listed as 1,800 m³; this source unit describes volume and is not a floor-area specification. Confirm the applicable installation conditions for the project. The noise entry does not state measurement distance, speed or background level. Evaluate energy use using the project operating conditions.

Maintenance and order scope

Isolate power before inspection. Follow the model manual for blades, fasteners, safety retainers, electrical controls and gearbox lubrication. Request the installation manual, model-specific compliance documents and written warranty. Confirm delivery terms, destination requirements, installation responsibility, commissioning, spare parts and warranty exclusions in the quotation.

Related industrial equipment

View all in HVLS Fans

Facility planning

HVLS Fan FAQs

Can I use an HVLS fan to improve the air quality of my facility?

Yes. HVLS fans reduce humidity and distribute odor and smoke, providing healthy, fresh air.

Can these HVLS fans be mounted outdoors?

Traditional HVLS fans can't be mounted outdoors, but the portable series can. Moveable fans are indoor or outdoor flexible; suitable for gardens, gyms, playgrounds and so on.

Can the speed of the fan be adjusted?

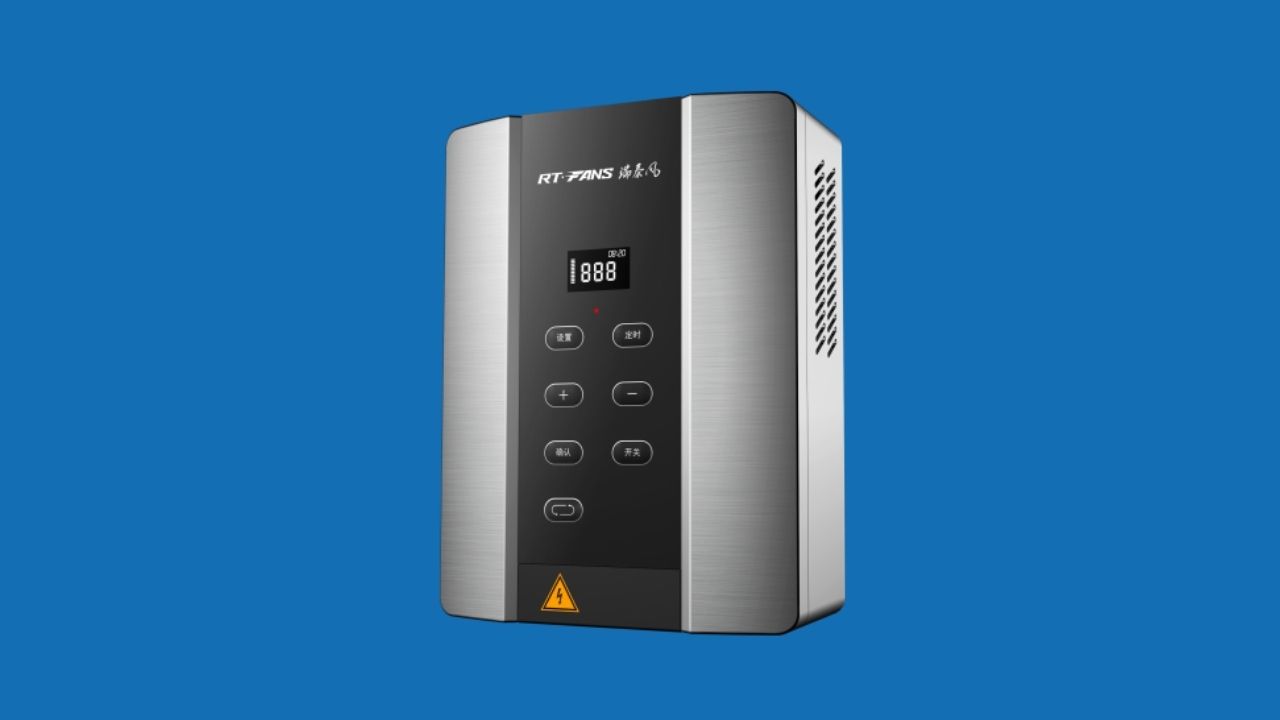

Yes. A DANFOSS frequency converter with a step-less regulator varies the speed.

Do I need an HVLS fan if I already have an excellent HVAC system?

HVLS fans assist the HVAC system and spread cool air to every corner, so the AC does not need to run fully for as long.

How do I know that I need an HVLS fan?

If you have a large space and want better air-conditioning performance, air quality and ventilation, you need an HVLS fan. One fan can cover an area of up to 1,800 sq. meters depending on the size of the fan.

How long is the warranty on an HVLS fan?

RTFANS HVLS fans have a warranty period of three years.

What is the expected service life of HVLS fans?

10 years or more, depending on installation and use.

What fan sizes are available?

Diameter from 2.8 m to 7.3 m. Industrial HVLS fans: 3.7–7.3 m; commercial HVLS fans: 2.8–4.0 m; PMSM fans: 2.8–7.3 m. Applicable area 400–1,800 sq. meters.
