Evaporative Cooling & Ventilation
Cooling Pads System
By RTFANSLast updated
RTFANS supplies evaporative cooling pad systems for agricultural, greenhouse, livestock and industrial ventilation applications. Cooling media, water circulation and installation components are configured according to the installation dimensions, ventilation requirements and application.
Key Engineering Highlights
Continuous wetted cooling media with water distribution, collection and return components
5090 and 7090 evaporative cooling media for different airflow and equipment requirements
Project-based system dimensions matched to the installation opening and cooling pad area
Suitable configurations for greenhouse, poultry, livestock and industrial ventilation projects
Aerodynamic & Airflow Sizing Principles
A complete fan-and-pad system combines wetted cooling media with controlled airflow. Exhaust fans draw warm outside air through the pads while water evaporation absorbs heat. Actual performance depends on airflow, air velocity, pad depth, outdoor temperature, relative humidity and the overall system design.
Available Models in Cooling Pads System (4)
Cooling Pads System

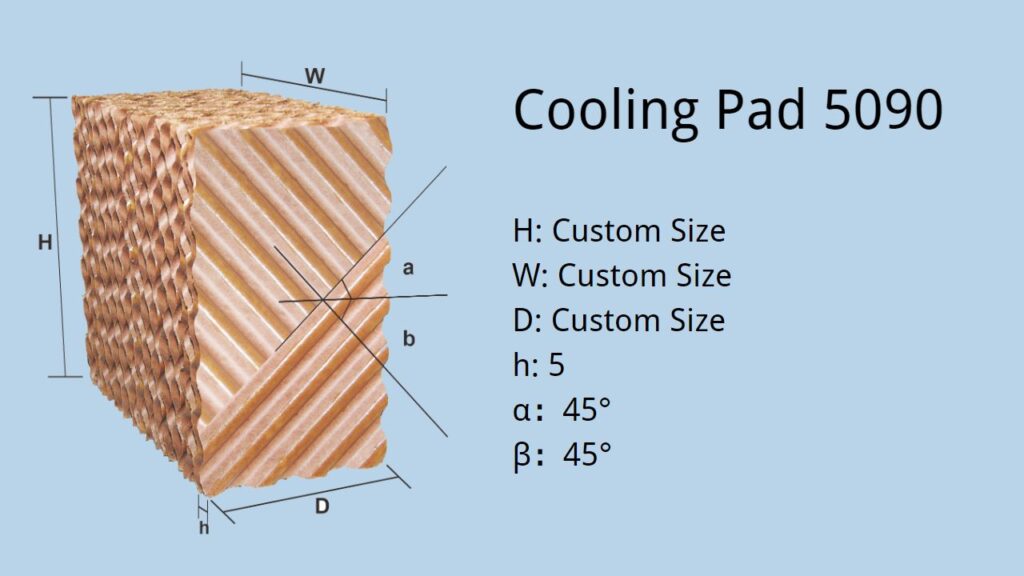

Evaporative Cooling Pad 5090
The RTFANS KA-5090 evaporative cooling pad uses a fine 5 mm flute structure and 45°/45° flute angle for effective air-to-water contact. Available in 50, 100 and 150 mm depths with custom dimensions for evaporative coolers, ventilation systems and OEM equipment.

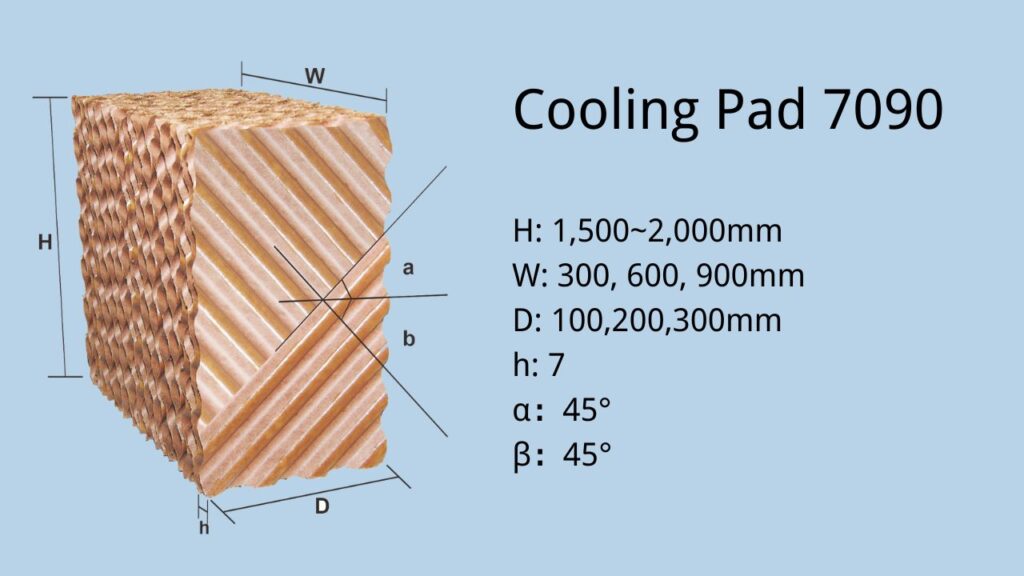

RTFANS Evaporative Cooling Pad 7090 is structured honeycomb wet-pad media for evaporative air coolers and pad-and-fan cooling systems, with configurable dimensions for project-specific installations.

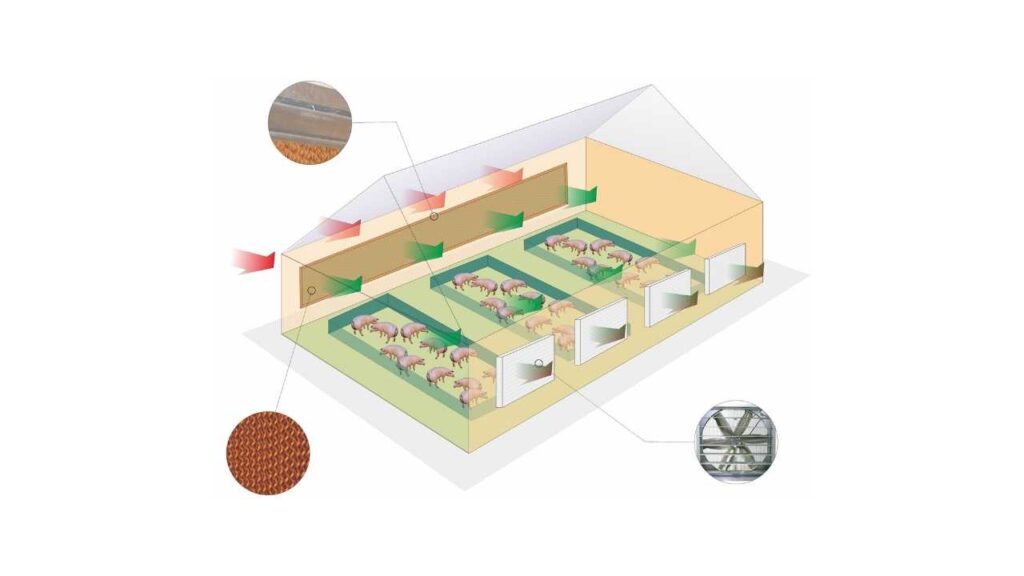

Complete evaporative cooling pad system for greenhouse, poultry, livestock and industrial ventilation applications, with water circulation and installation components configured to project requirements.

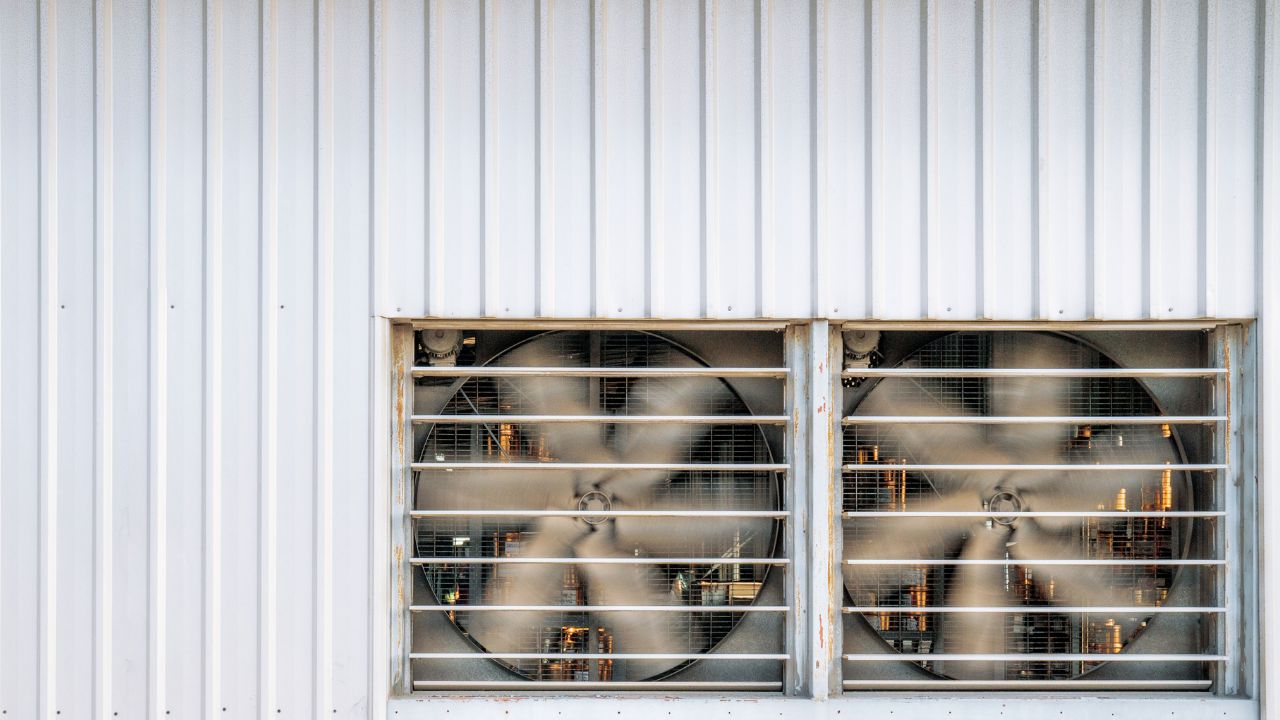

RTFANS industrial exhaust fans for factories, workshops, greenhouses, poultry houses and livestock buildings, with model options from 15,000 to 38,000 m³/h.
Honeycomb wet-pad media for evaporative air coolers and pad-and-fan cooling systems. Water is distributed across the pad and incoming hot air passes through the wet fluted channels; evaporation lowers the leaving-air temperature.
What is the difference between the 5090 and 7090 cooling pads?
The 5090 uses a fine 5 mm flute structure with a 45°/45° flute angle, in 50, 100 and 150 mm depths with custom dimensions. The 7090 is treated paper media with hardeners, preservatives and odorless binders, in pad heights 1,500 / 1,800 / 2,000 mm, widths 300 / 600 / 900 mm and depths 100 / 150 / 200 / 300 mm.
How does a cooling pad and exhaust fan system work?
The honeycomb pad is wetted and the exhaust fan draws hot indoor air out, creating negative pressure that pulls fresh outdoor air through the wet pad. Evaporation cools the incoming air before it reaches the occupied area.
What exhaust fan models are available?
KA-1380 GI, KA-1220 GI and KA-900 GI, with model options from 15,000 to 38,000 m³/h
Where are these systems used?
Factories, workshops, greenhouses, poultry houses and livestock buildings, and other large ventilated spaces.
Can the pad dimensions be customized?
Yes. The 5090 is available in custom dimensions; the 7090 is configured for project-specific installations.
