PMSM Fan used for Large Spaces
Target Price: $2,600.00
The PMSM Fan stands out for its remarkably low noise level, operating at approximately 36dB. This level of noise is even lower than the background noise typically found in tranquil libraries (39dB), making it an excellent choice for environments that require tranquility, such as libraries, schools, universities, and offices.
The PMSM Fan, including the large 24ft version, operates quietly without causing any disturbance. Its exceptional quietness is a testament to the diligent efforts of RTFANS and university professors in creating a fan that offers a peaceful and undisturbed environment.
| MPN | RTF-DF-7E-II | RTF-DF-6E-II | RTF-DF-5E-II |
| SKU | RTFDF7E02 | RTFDF6E02 | RTFDF5E02 |
| Fan Dia. | 7.3m/24ft | 6.1m/20ft | 5.5m/18ft |
| Power | 1.2/1.6 | 0.88/1.2 | 0.88/1.2 |
| Air Flow(m³/min) | 12,600 | 11,200 | 9,800 |
| Current | 4.7/2.7A | 3.5/2.0A | 3.5/2.0A |
| Application Area | 1,600m² | 1,200m² | 1,050m² |
| Noise | 39dB | 39dB | 39dB |
| Weight | 110 | 105 | 100 |
| Fan Blades. | 5 | ||

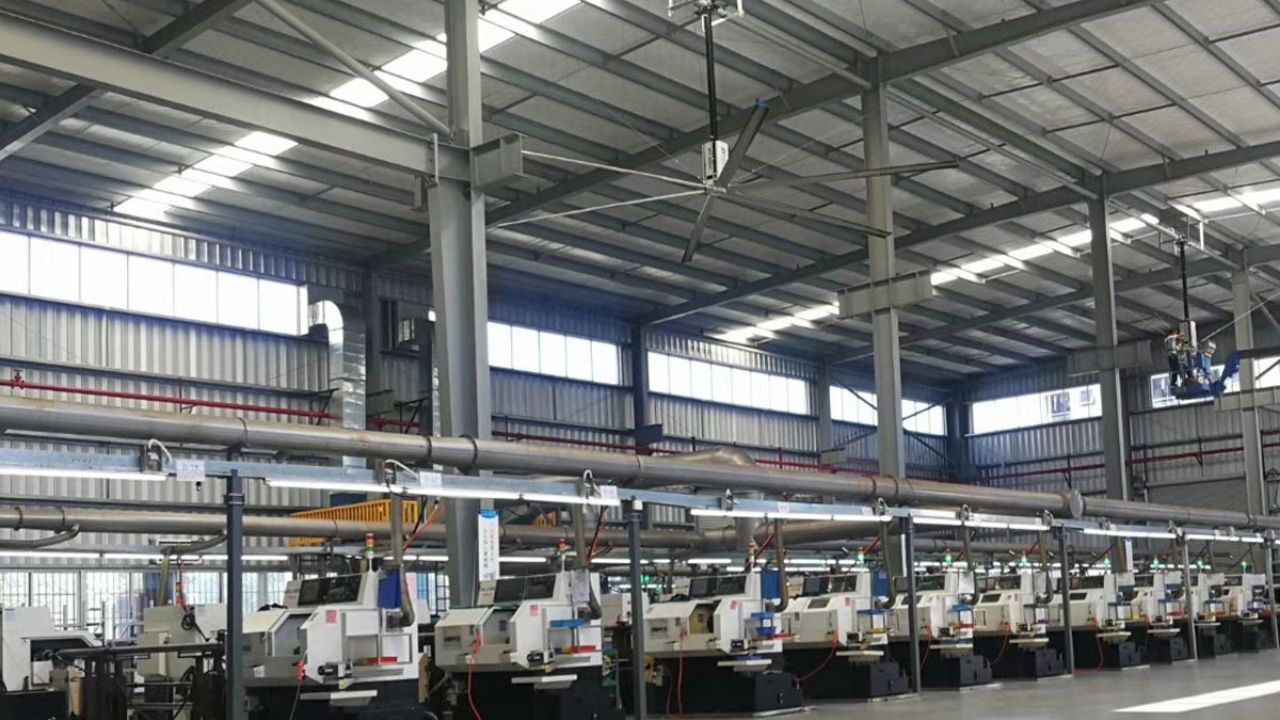

Large Space of Action
PMSM fans have a larger space of action as compared to other technologies. These fans can cover more areas, which indicates high performance. The largest fan of 24ft diameter has a maximum space of action of 1,800 square meters, which is more than a simple HVLS fan. It is because of the high airflow. The 24ft PMSM fan can provide 15,000 cubic meters per minute, while a simple HVLS fan of the same size has an airflow of 13,500 cubic meters per minute at the same rotational speed. Thus, you can install fewer units in your large space. PMSM fans are perfect for large spaces where you need constant ventilation to improve air quality. Due to high airflow, they cover a very large area and throw a well-aligned breeze to every corner.
- High efficiency for low operating costs
- Compact design means low space requirements
- Robust grey cast iron housing
- High axial and radial load capacities enable safe operation
- Quiet running
- Application-specific versions
Less Weight
The running cost of PMSM fans is less than all PMSM fans. They use almost 1/10 of the electricity used by air conditioning systems. With these fans, you can cover a large area and improve air quality. These fans use only 1.5kW motors to spread the air in a large area. They provide an excellent cooling effect and a comfortable environment at a very low running cost.
Low Cost of Ventilation
RTFANS also makes a wide range of commercial and industrial ceiling fans. Commercial ceiling fans are smaller than industrial ceiling fans, and they can cover commercial areas easily. These fans are very quiet and have a noise level of around 40-42 dB. You can install these fans in restaurants, gyms, dining lounges, libraries, or any commercial place. There are different sizes available, so you can choose the right size according to your needs. Our fans are excellent to improve the air quality and ventilate a large area.
You can contact us to get an idea of the size of the fans. We can also help you select the right size.
Stay Cool, Save Energy
By utilizing RTFANS’s HVLS Fans, air coolers, and other systems, we can establish a comfortable indoor environment, enabling people to rest and work more effectively.
Driving Device
- Imported Germany “”NORD”” coaixal bevel wheel decelerator with diameter of axle 40MM.
- German “Simrit” double oil seal design, durable and reliable.
- “Shell” top class “Omala” S4 lubrication oil, zero maintenance for over 20000 hours.
- IE3 High efficiency motor with imported “SKF-VL” bearing, 10%-15% energy saving than IE1.

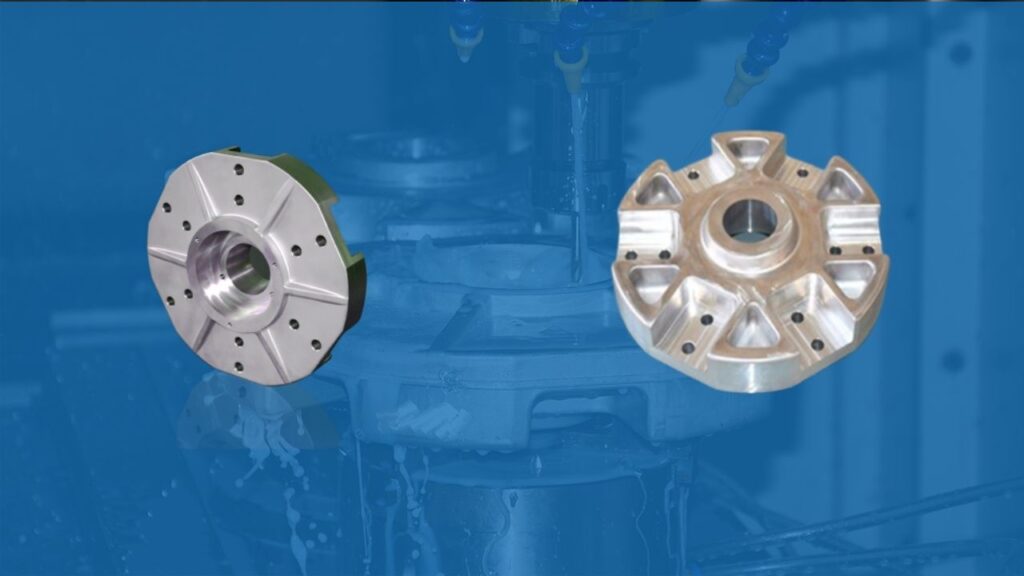

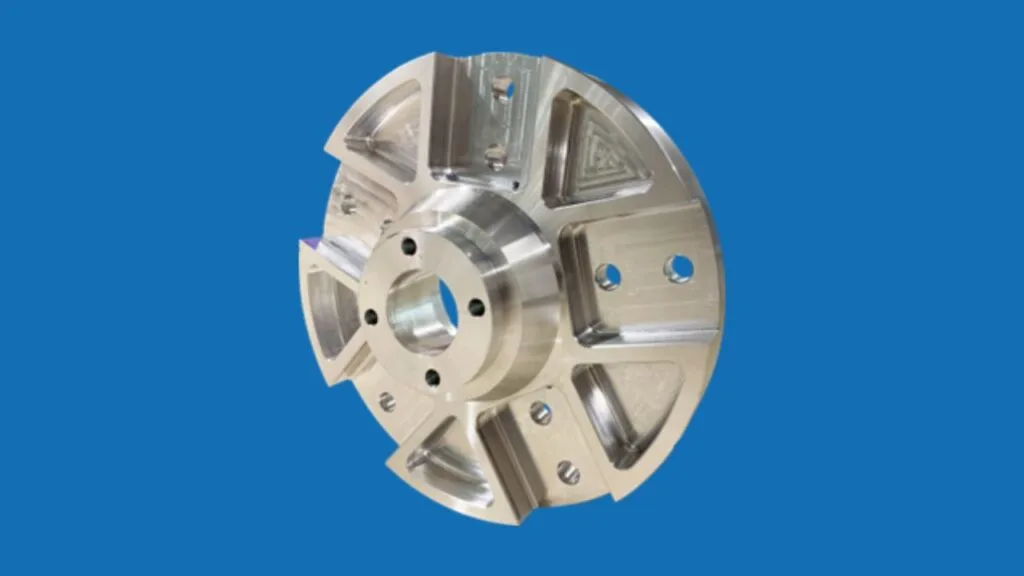

Hub Wheel
- Imported Aeronautic Aluminum Alloy (AA7075);
- Unique Double Wheel Hub design;
- High pressure forging technology, with T6 thermal treatment process & CNC precision machining & dynamic balance test of the complete set chassis & 40 times strength test.

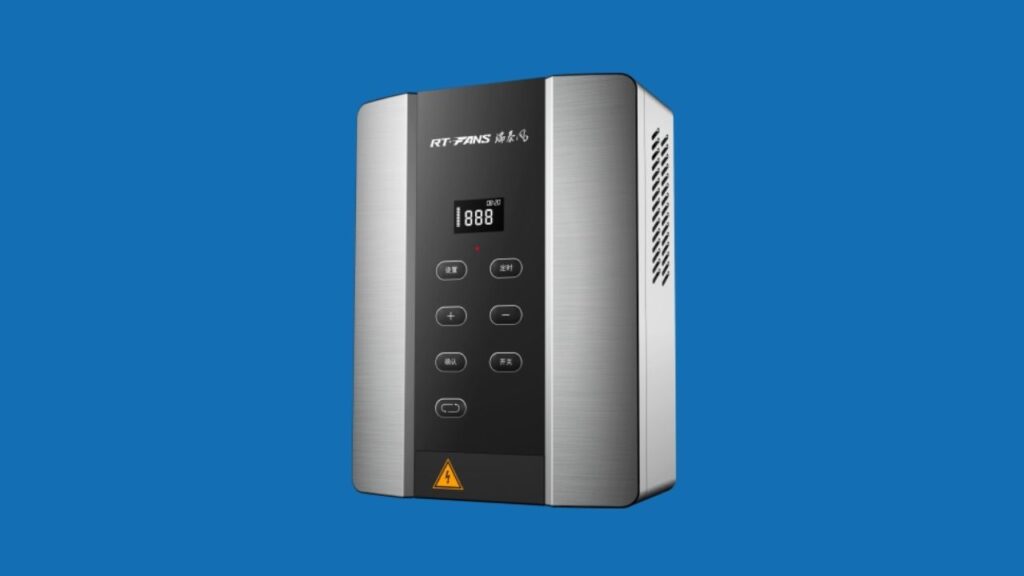

RTFANS VFD Controlling
(Standard Configuration)
- VFD inverter controller, with stepless speed regulation;
- With safety protection module inside, over-current, over-voltage, lack of phase, etc.

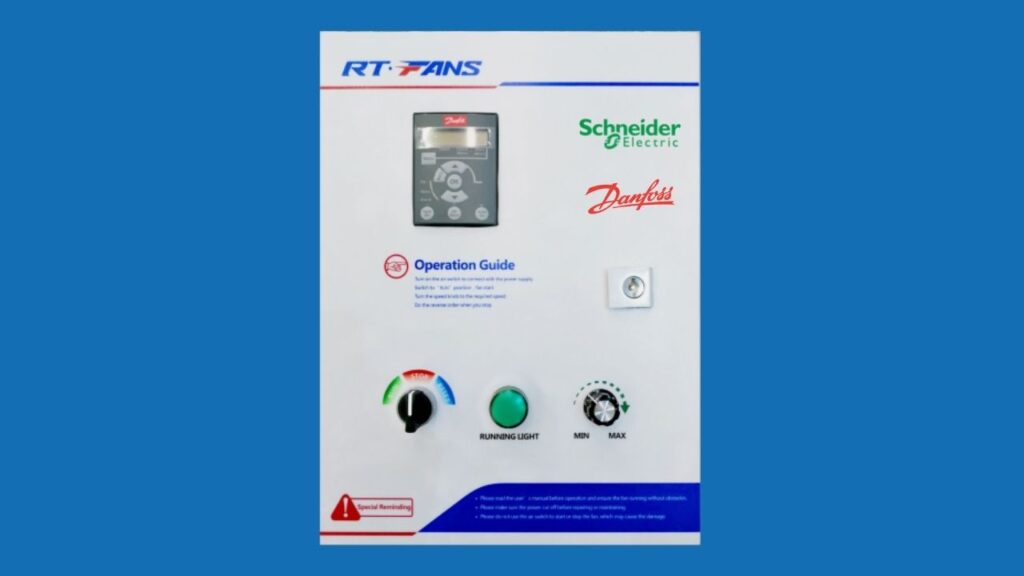

VFD Controlling (Optional)
- Denmark Imported “”DANFOSS”” VFD inverter, with stepless speed regulation;
- IP55 motor protection grade and NEMA 1 standard control box;
- “Schneider” brand electrical sets, with safety protection module inside.

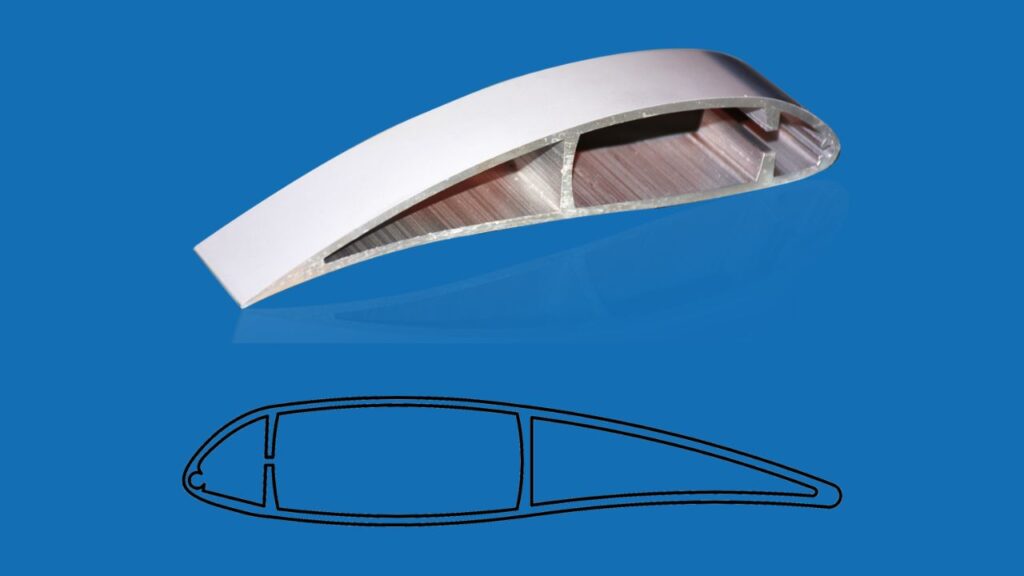

Fan Blade
- High strength aircraft Aluminum alloy: AA6063T6511 with fluorocarbon coating surface processing;
- Patented airfoil design with special reinforce rib support system which increase the strength of fan blade and avoids the sagging of fan tail and fatigue loss of connecting components.”
Cardan Joint
Unique cardan joint design, working as a human beings’ joint, to decrease the shocking of fan during running.
Save Energy Cost Up To 30%
Cover 1,000m² + with only 1.5kw!
Big industrial ceiling fans are energy efficient,cost-effective and can provide massive air movement in large industrial and commercial spaces.
Motor Frame
“mortise and tenon joint structure” welded by robot, traditional technique with double guarantee on Q345B high-strength structural steel.

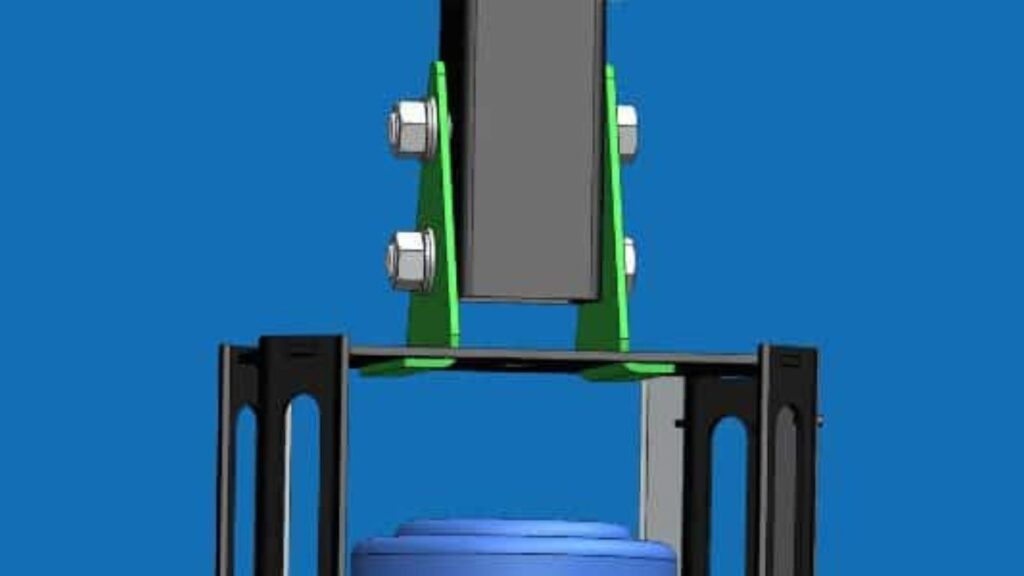

Anti-Drop Device
Unique design with milling cutter chuck to connect the motor shaft and hub wheel, using an Anti-drop device to connect with milling cutter chuck to eliminate any risk of falling, more higher security.

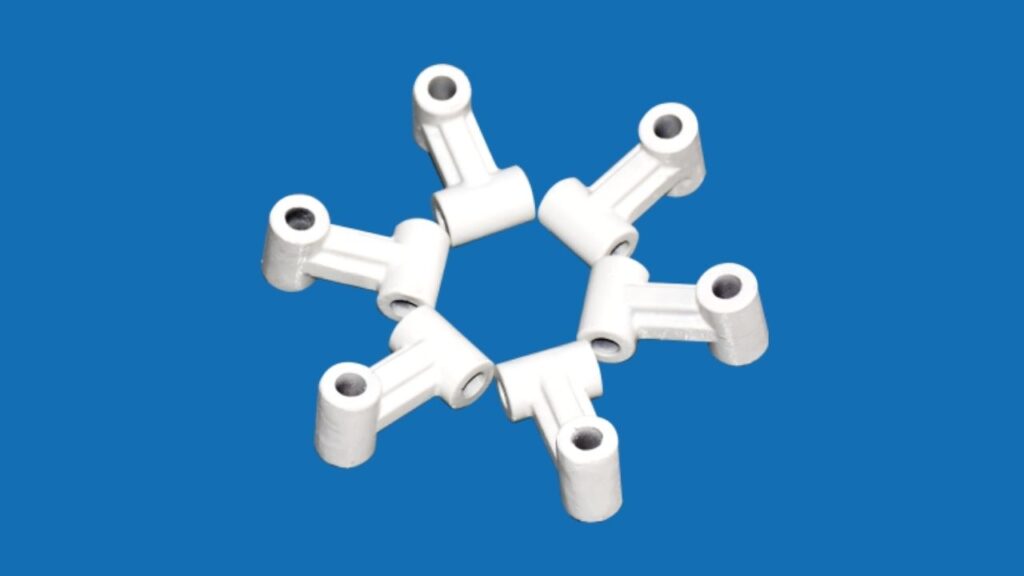

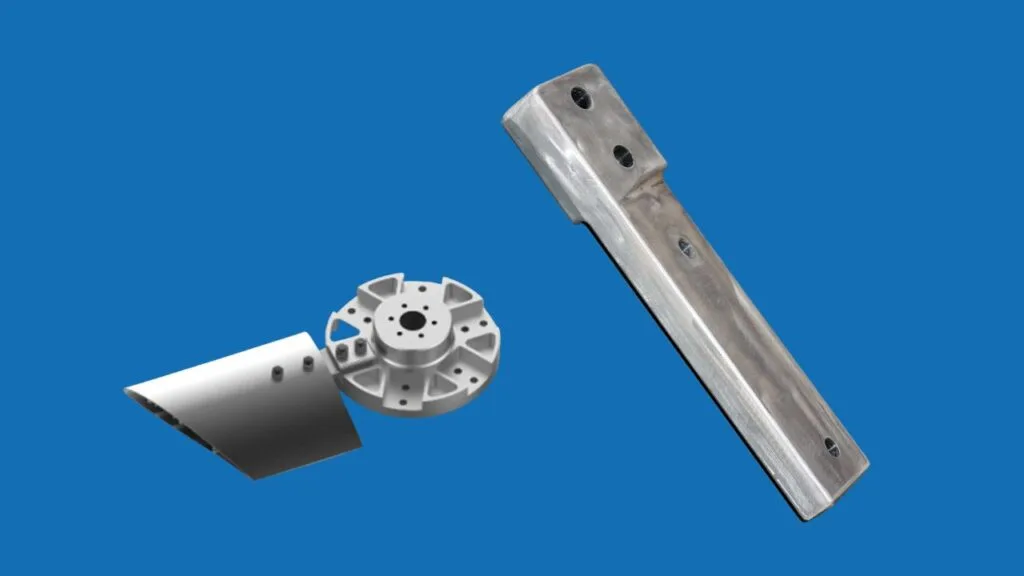

Fan Blade Plug Connection
- High strength aircraft Aluminum alloy: AA7075 Sereis;
- The blades are installed in the interpolation type, which increases the contact area between the blade plug and the inner wall of the blade and improves the force performance on the blade and the blade plug, bettering its security.

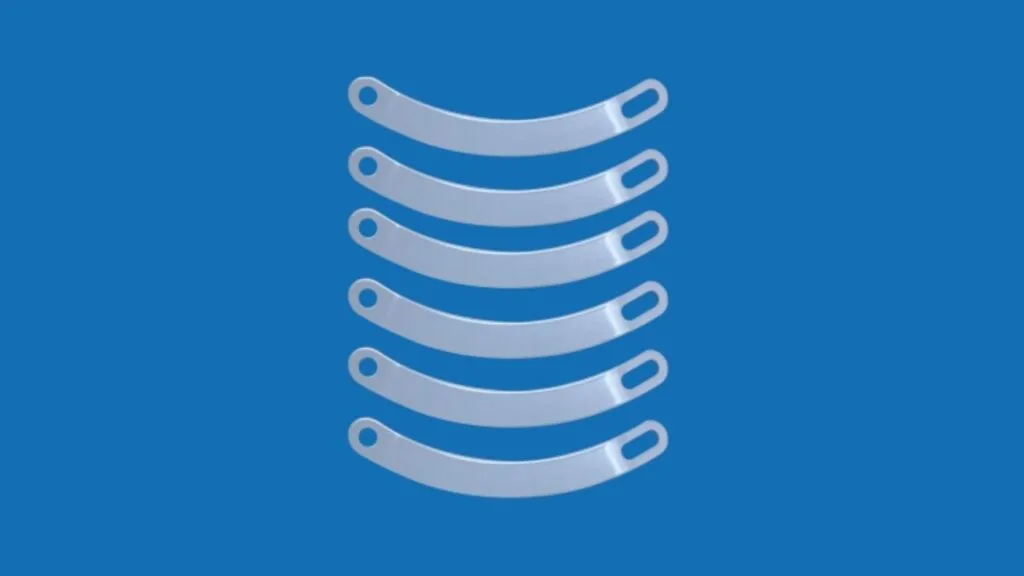

Safety Retainer
6 pcs airfoils are connected into a whole with 6 pcs safety retainer.

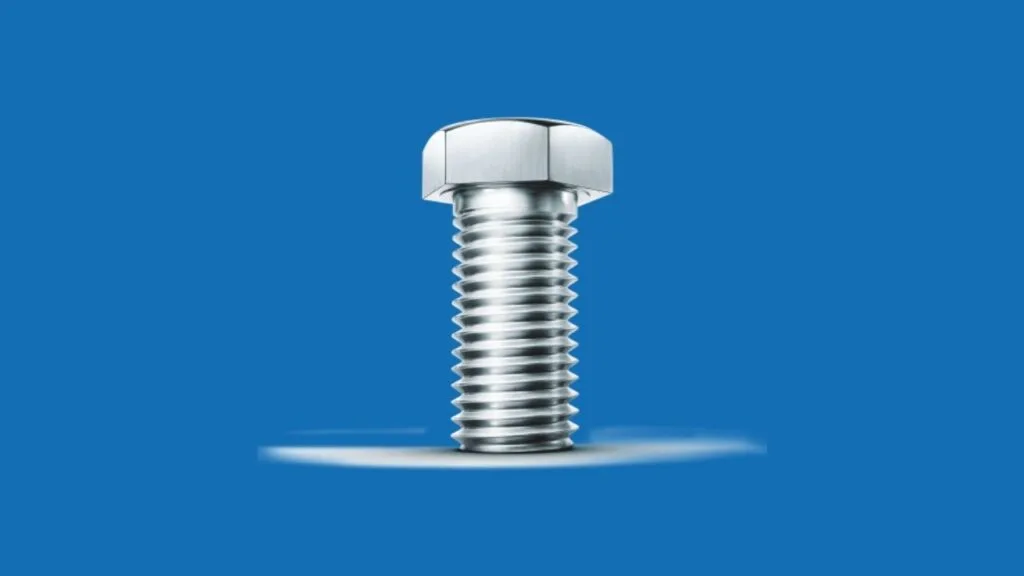

Fasteners
German DIN933 Industrial Bolt and DIN125A locknut with high strength 8.8 grade, the practical stress it could endure is 10 times than normal.

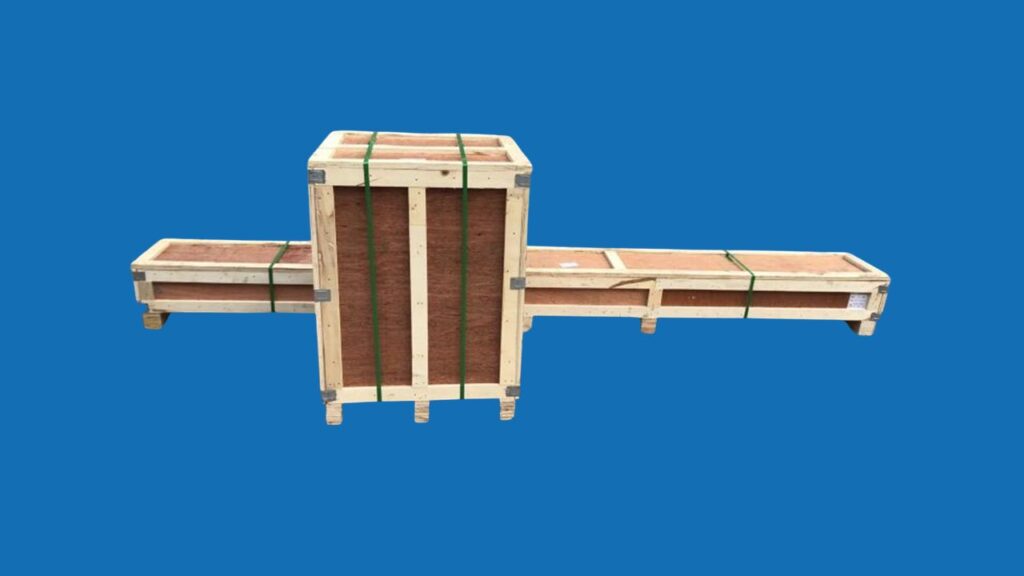

Packaging
Standard Export Package.
Frequently Asked Questions
What is the warranty for King Series products?
King Series products come with a 10-year warranty on all parts and components. This ensures that you are protected against any manufacturing defects or issues.
Are King Series units energy-efficient?
Yes, King Series units are designed to be highly energy-efficient. They use advanced technology to help reduce energy consumption and lower your utility bills.
How do King Series products compare to other HVAC systems on the market?
King Series products are known for their superior performance, reliability and durability. They are designed to outperform other HVAC systems on the market in every way.
