Wet the pads
Water is circulated from the tank to saturate the evaporative cooling pads.
RTFANS product referencePortable Air Coolers / Product record

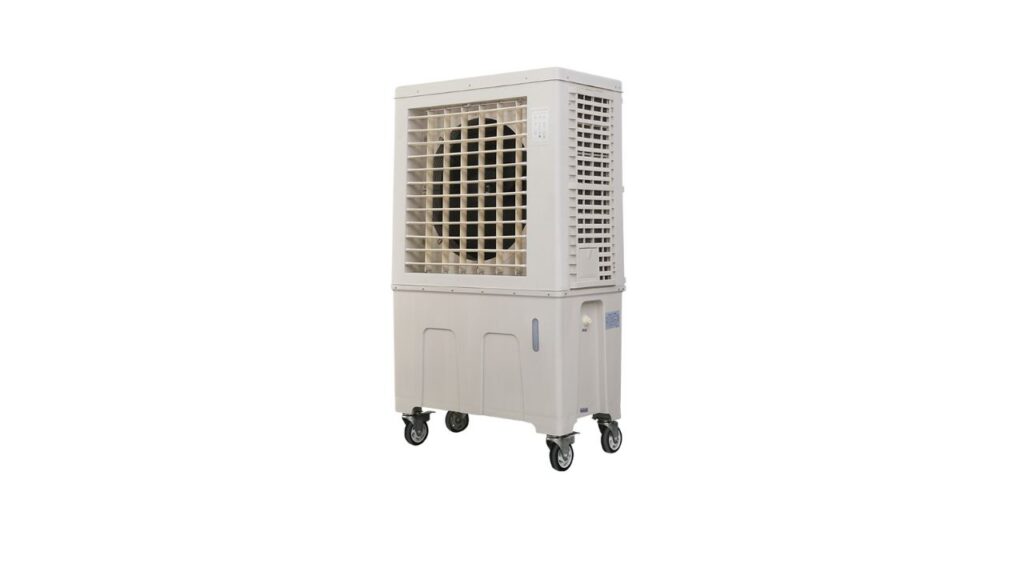

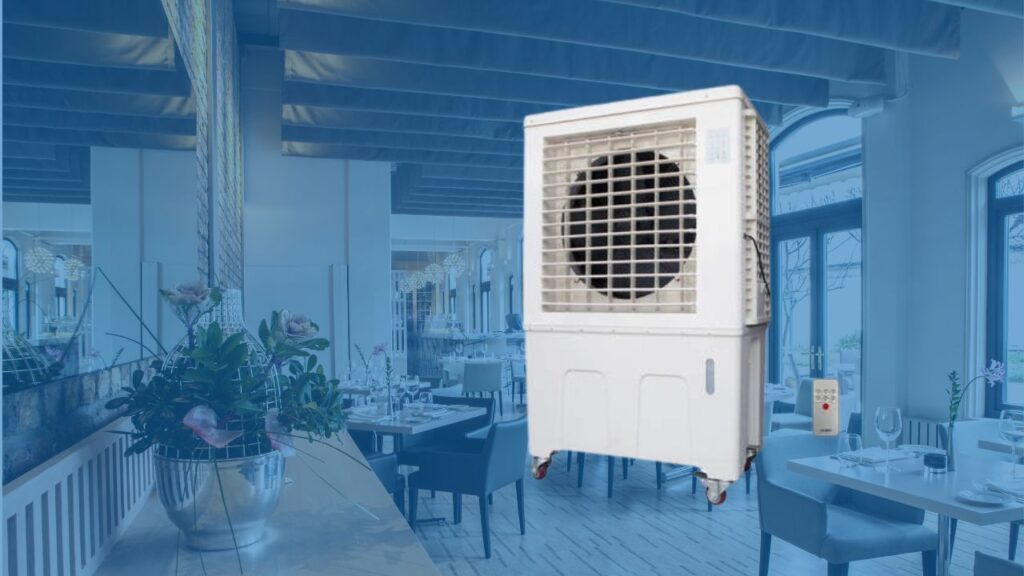

publishedPortable Air Cooler KA-60L
Efficient evaporative cooling solution for warehouses, workshops and large workspaces.
SeriesProduct record
ModelKA-60LS / KA-60L
CategoryPortable Air Coolers
Product record retained for engineering review and project selection.
Product overview
Specification snapshot
MPN / modelKA-60LS / KA-60L
Airflow6,800 / 6,800
Rated power230 / 230
Voltage110/230V, 50/60HZ / 110/230V, 50/60HZ
Product record
Technical specifications
| MPN | KA-60LS / KA-60L |
|---|---|
| SKU | KA60LKY01 / KA60LSKY1 |
| Housing Material | 100% new Anti-UV PP / 100% new Anti-UV PP |
| Voltage/Freq (V/Hz) | 110/230V, 50/60HZ / 110/230V, 50/60HZ |
| AMPS | 2.0A / 2.0A |
| CONTROL SYSTEM | LCD panel and remote control / LCD panel and remote control |
| TIMER | NA / NA |
| FRONT SAFETY GUARD | YES / YES |
| FAN DIAMETER (INCHES/CM) | 19"/48CM / 19"/48CM |
| FAN BLADE MATERIAL | Reinforced nylon / Reinforced nylon |
| FAN SPEED | 3-speed / 3-speed |
| Max Air Flow(CMH) | 6,800 / 6,800 |
| Power (w) | 230 / 230 |
| Physical Size(MM) | 890*500*1,080mm / 890*500*1,380mm |
| Air Outlet Size(MM) | Manual air louver / Manual air louver |
| Weight | 37 / 45 |
| Water Tank Capacity(L) | 38 / 120 |
| Applicable Area(M²) | 30~60 / 30~60 |
Product context
About Portable Air Cooler KA-60L
Portable Air Cooler KA-60L is a mobile evaporative cooling solution for large factories, warehouses and high-heat industrial spaces. It combines a water tank, fan and wheeled housing for flexible spot cooling.
6,800 / 6,800 airflowFresh-air evaporative cooling30~60 / 30~60 application area
Operating principle
How it works
Draw in hot air
The fan or blower pulls hot outdoor air through the wet pads.
Deliver cooled air
Heat is absorbed through evaporation before filtered air reaches the occupied space.
Built for industrial use
Engineering features
High-volume fresh air
Continuous outdoor air movement helps reduce heat in open or semi-open facilities.
Efficient cooling pads
Even wetting supports stable evaporation, filtration and cooling performance.
Durable construction
Corrosion-resistant housing and reinforced components support long service life.
Simple controls
Timer, temperature and optional humidity controls make daily operation easier.
Selection data
Performance profile
- Airflow
- 6,800 / 6,800
- Rated power
- 230 / 230
- Application area
- 30~60 / 30~60
- Water consumption
- Needs confirmation
Before specifying
Operating notes
Cooling performance depends on entering air temperature, relative humidity and ventilation. The system performs best where cooled fresh air can move continuously through the space.
Service routine
Maintenance checklist
Before seasonal shutdownTurn off the water supply, empty and clean the tank, and dry the cooling pads.
During extended storageDrain circulating water and check the tank, pads and housing for scale, algae or corrosion.
Facility planning
Recommended applications
Portable Cooling Application Details
Review mobility, water capacity, controls and the recommended open-space applications for this portable cooler.
Portable Air Cooler KA-60L is a mobile evaporative cooling solution for workshops, warehouses, events and occupied areas that need flexible spot cooling. Its wheeled housing allows operators to move cooling toward people, machines or work zones without permanent ductwork.
Water is added to the tank and circulated through the evaporative cooling pads. The fan draws warm outdoor air through the wetted media, where evaporation absorbs heat before cooled fresh air is delivered into the open space.

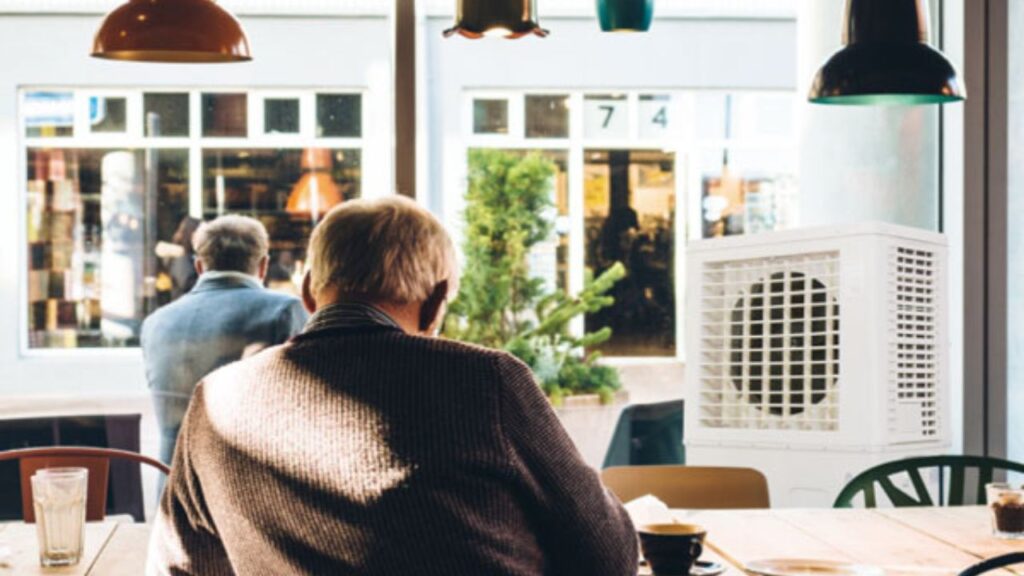

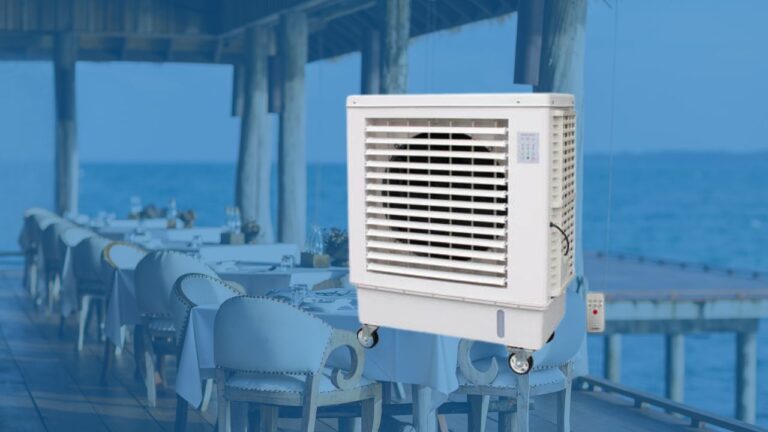

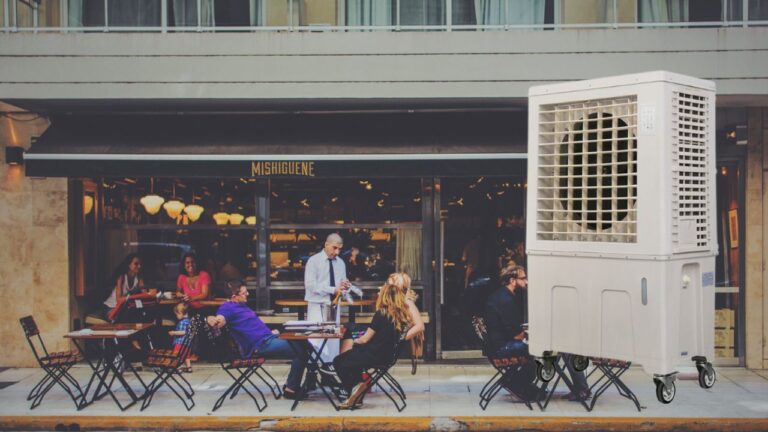

The Portable Air Cooler KA-60L is designed for ventilated environments such as factories, logistics areas, workshops, farms, sports facilities and temporary event spaces. Evaporative cooling performs best when the air path remains open and warm air can leave the space.
The unit combines a protective housing, adjustable fan speed and practical operator controls. Depending on the configuration, the published specifications include 6,800 / 6,800 airflow, 230 / 230 rated power, 30~60 / 30~60 application area and a 38 / 120 water tank. Confirm the final electrical configuration and operating conditions before quotation.
Routine service includes checking water quality, cleaning the tank and cooling pads, inspecting the pump and confirming that the fan guard and wheels remain secure. Drain the water system during extended storage and keep the air path free from obstructions.
For project selection, confirm the required coverage, humidity conditions, refill or drainage routine and the position of workers or equipment that need targeted cooling.
